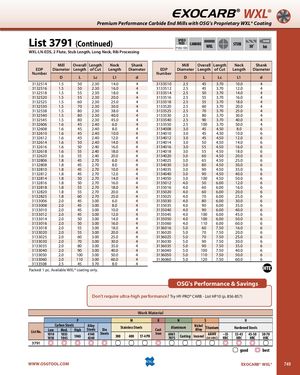

Общий каталог OSG 2018 - 2019 - страница 749

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3791 (Continued) SPEEDFEED CARBIDEP1002-1005WXL SHANKSTUB30˚h6 WXL-LN-EDS, 2 Flute, Stub Length, Long Neck, Rib Processing Mill Overall Length Neck Shank Mill Overall Length Neck Shank EDP Diameter Length of Cut Length Diameter EDP Diameter Length of Cut Length Diameter Number Number D L Lc L1 d D L Lc L1 d 3132514 1.5 50 2.30 14.0 4 3133510 2.5 45 3.70 10.0 4 3132516 1.5 50 2.30 16.0 4 3133512 2.5 45 3.70 12.0 4 3132518 1.5 55 2.30 18.0 4 3133514 2.5 50 3.70 14.0 4 3132520 1.5 55 2.30 20.0 4 3133516 2.5 55 3.70 16.0 4 3132525 1.5 60 2.30 25.0 4 3133518 2.5 55 3.70 18.0 4 3132530 1.5 70 2.30 30.0 4 3133520 2.5 60 3.70 20.0 4 3132538 1.5 80 2.30 38.0 4 3133525 2.5 70 3.70 25.0 4 3132540 1.5 80 2.30 40.0 4 3133530 2.5 80 3.70 30.0 4 3132545 1.5 80 2.30 45.0 4 3133540 2.5 90 3.70 40.0 4 3132606 1.6 45 2.40 6.0 4 3133550 2.5 100 3.70 50.0 4 3132608 1.6 45 2.40 8.0 4 3134008 3.0 45 4.50 8.0 6 3132610 1.6 45 2.40 10.0 4 3134010 3.0 45 4.50 10.0 6 3132612 1.6 45 2.40 12.0 4 3134012 3.0 45 4.50 12.0 6 3132614 1.6 50 2.40 14.0 4 3134014 3.0 50 4.50 14.0 6 3132616 1.6 50 2.40 16.0 4 3134016 3.0 55 4.50 16.0 6 3132618 1.6 55 2.40 18.0 4 3134018 3.0 55 4.50 18.0 6 3132620 1.6 55 2.40 20.0 4 3134020 3.0 60 4.50 20.0 6 3132806 1.8 45 2.70 6.0 4 3134025 3.0 65 4.50 25.0 6 3132808 1.8 45 2.70 8.0 4 3134030 3.0 80 4.50 30.0 6 3132810 1.8 45 2.70 10.0 4 3134035 3.0 90 4.50 35.0 6 3132812 1.8 45 2.70 12.0 4 3134040 3.0 90 4.50 40.0 6 3132814 1.8 50 2.70 14.0 4 3134050 3.0 100 4.50 50.0 6 3132816 1.8 50 2.70 16.0 4 3135012 4.0 50 6.00 12.0 6 3132818 1.8 55 2.70 18.0 4 3135016 4.0 60 6.00 16.0 6 3132820 1.8 55 2.70 20.0 4 3135020 4.0 60 6.00 20.0 6 3132825 1.8 60 2.70 25.0 4 3135025 4.0 70 6.00 25.0 6 3133006 2.0 45 3.00 6.0 4 3135030 4.0 80 6.00 30.0 6 3133008 2.0 45 3.00 8.0 4 3135035 4.0 90 6.00 35.0 6 3133010 2.0 45 3.00 10.0 4 3135040 4.0 90 6.00 40.0 6 3133012 2.0 45 3.00 12.0 4 3135045 4.0 100 6.00 45.0 6 3133014 2.0 50 3.00 14.0 4 3135050 4.0 100 6.00 50.0 6 3133016 2.0 50 3.00 16.0 4 3135060 4.0 110 6.00 60.0 6 3133018 2.0 55 3.00 18.0 4 3136016 5.0 60 7.50 16.0 6 3133020 2.0 55 3.00 20.0 4 3136020 5.0 70 7.50 20.0 6 3133025 2.0 60 3.00 25.0 4 3136025 5.0 70 7.50 25.0 6 3133030 2.0 70 3.00 30.0 4 3136030 5.0 90 7.50 30.0 6 3133035 2.0 80 3.00 35.0 4 3136035 5.0 90 7.50 35.0 6 3133040 2.0 90 3.00 40.0 4 3136040 5.0 100 7.50 40.0 6 3133050 2.0 100 3.00 50.0 4 3136050 5.0 110 7.50 50.0 6 3133060 2.0 110 3.00 60.0 4 3136060 5.0 120 7.50 60.0 6 3133508 2.5 45 3.70 8.0 4 Packed: 1 pc. Available WXL® coating only. OSG's Performance & Savings Don’t require ultra-high performance? Try HY-PRO® CARB - List HP10 (p. 856-857) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 3791 good best WWW.OSGTOOL.COM EXOCARB® WXL® 749
