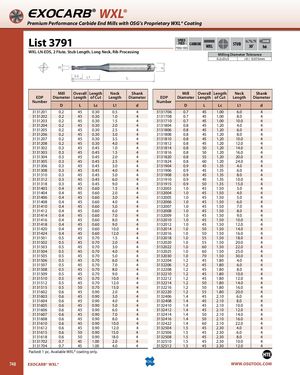

EXOCARB® WXL® Premium Performance Carbide End Mills with OSG’s Proprietary WXL® Coating List 3791 SPEEDFEED CARBIDEP1002-1005WXL SHANKSTUB30˚h6 WXL-LN-EDS, 2 Flute, Stub Length, Long Neck, Rib Processing Milling Diameter Tolerance 0.2≤D≤5 +0 / -0.015mm Mill Overall Length Neck Shank Mill Overall Length Neck Shank EDP Diameter Length of Cut Length Diameter EDP Diameter Length of Cut Length Diameter Number Number D L Lc L1 d D L Lc L1 d 3131201 0.2 45 0.30 0.5 4 3131706 0.7 45 1.00 6.0 4 3131202 0.2 45 0.30 1.0 4 3131708 0.7 45 1.00 8.0 4 3131203 0.2 45 0.30 1.5 4 3131710 0.7 45 1.00 10.0 4 3131204 0.2 45 0.30 2.0 4 3131804 0.8 45 1.20 4.0 4 3131205 0.2 45 0.30 2.5 4 3131806 0.8 45 1.20 6.0 4 3131206 0.2 45 0.30 3.0 4 3131808 0.8 45 1.20 8.0 4 3131207 0.2 45 0.30 3.5 4 3131810 0.8 45 1.20 10.0 4 3131208 0.2 45 0.30 4.0 4 3131812 0.8 45 1.20 12.0 4 3131302 0.3 45 0.45 1.0 4 3131814 0.8 50 1.20 14.0 4 3131303 0.3 45 0.45 1.5 4 3131816 0.8 50 1.20 16.0 4 3131304 0.3 45 0.45 2.0 4 3131820 0.8 55 1.20 20.0 4 3131305 0.3 45 0.45 2.5 4 3131824 0.8 60 1.20 24.0 4 3131306 0.3 45 0.45 3.0 4 3131904 0.9 45 1.35 4.0 4 3131308 0.3 45 0.45 4.0 4 3131906 0.9 45 1.35 6.0 4 3131310 0.3 45 0.45 5.0 4 3131908 0.9 45 1.35 8.0 4 3131312 0.3 45 0.45 6.0 4 3131910 0.9 45 1.35 10.0 4 3131318 0.3 45 0.45 9.0 4 3131915 0.9 50 1.35 15.0 4 3131403 0.4 45 0.60 1.5 4 3132003 1.0 45 1.50 3.0 4 3131404 0.4 45 0.60 2.0 4 3132004 1.0 45 1.50 4.0 4 3131406 0.4 45 0.60 3.0 4 3132005 1.0 45 1.50 5.0 4 3131408 0.4 45 0.60 4.0 4 3132006 1.0 45 1.50 6.0 4 3131410 0.4 45 0.60 5.0 4 3132007 1.0 45 1.50 7.0 4 3131412 0.4 45 0.60 6.0 4 3132008 1.0 45 1.50 8.0 4 3131414 0.4 45 0.60 7.0 4 3132009 1.0 45 1.50 9.0 4 3131416 0.4 45 0.60 8.0 4 3132010 1.0 45 1.50 10.0 4 3131418 0.4 45 0.60 9.0 4 3132012 1.0 45 1.50 12.0 4 3131420 0.4 45 0.60 10.0 4 3132014 1.0 50 1.50 14.0 4 3131424 0.4 45 0.60 12.0 4 3132016 1.0 50 1.50 16.0 4 3131501 0.5 45 0.70 1.5 4 3132018 1.0 55 1.50 18.0 4 3131502 0.5 45 0.70 2.0 4 3132020 1.0 55 1.50 20.0 4 3131503 0.5 45 0.70 3.0 4 3132022 1.0 60 1.50 22.0 4 3131504 0.5 45 0.70 4.0 4 3132025 1.0 60 1.50 25.0 4 3131505 0.5 45 0.70 5.0 4 3132030 1.0 70 1.50 30.0 4 3131506 0.5 45 0.70 6.0 4 3132204 1.2 45 1.80 4.0 4 3131507 0.5 45 0.70 7.0 4 3132206 1.2 45 1.80 6.0 4 3131508 0.5 45 0.70 8.0 4 3132208 1.2 45 1.80 8.0 4 3131509 0.5 45 0.70 9.0 4 3132210 1.2 45 1.80 10.0 4 3131510 0.5 45 0.70 10.0 4 3132212 1.2 45 1.80 12.0 4 3131512 0.5 45 0.70 12.0 4 3132214 1.2 50 1.80 14.0 4 3131515 0.5 50 0.70 15.0 4 3132216 1.2 50 1.80 16.0 4 3131602 0.6 45 0.90 2.0 4 3132220 1.2 55 1.80 20.0 4 3131603 0.6 45 0.90 3.0 4 3132406 1.4 45 2.10 6.0 4 3131604 0.6 45 0.90 4.0 4 3132408 1.4 45 2.10 8.0 4 3131605 0.6 45 0.90 5.0 4 3132410 1.4 45 2.10 10.0 4 3131606 0.6 45 0.90 6.0 4 3132412 1.4 45 2.10 12.0 4 3131607 0.6 45 0.90 7.0 4 3132414 1.4 50 2.10 14.0 4 3131608 0.6 45 0.90 8.0 4 3132416 1.4 50 2.10 16.0 4 3131610 0.6 45 0.90 10.0 4 3132422 1.4 60 2.10 22.0 4 3131612 0.6 45 0.90 12.0 4 3132504 1.5 45 2.30 4.0 4 3131615 0.6 50 0.90 15.0 4 3132506 1.5 45 2.30 6.0 4 3131618 0.6 50 0.90 18.0 4 3132508 1.5 45 2.30 8.0 4 3131702 0.7 45 1.00 2.0 4 3132510 1.5 45 2.30 10.0 4 3131704 0.7 45 1.00 4.0 4 3132512 1.5 45 2.30 12.0 4 Packed: 1 pc. Available WXL® coating only. 748 EXOCARB® WXL® WWW.OSGTOOL.COM
