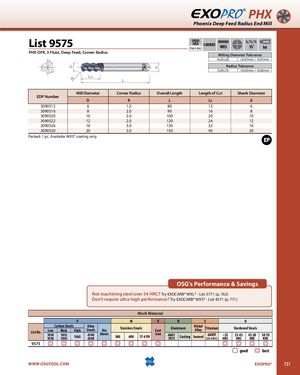

PHX Phoenix Deep Feed Radius End Mill List 9575 SPEEDFEED CARBIDEP984-985WXS SHANK55˚h6 PHX-DFR, 3 Flute, Deep Feed, Corner Radius Milling Diameter Tolerance 6≤D≤20 +0.01mm / -0.01mm Radius Tolerance 3≤R≤10 +0.03mm / -0.03mm Mill Diameter Corner Radius Overall Length Length of Cut Shank Diameter EDP Number D R L Lc d 3090512 6 1.5 80 12 6 3090516 8 2.0 90 16 8 3090520 10 2.0 100 20 10 3090522 12 2.0 120 24 12 3090526 16 3.0 130 32 16 3090530 20 3.0 150 40 20 Packed: 1 pc. Available WXS® coating only. OSG's Performance & Savings Not machining steel over 54 HRC? Try EXOCARB® WXL® - List 3771 (p. 762) Don’t require ultra-high performance? Try EXOCARB® WXS® - List 4571 (p. 771) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9575 good best WWW.OSGTOOL.COM EXOPRO® 731
