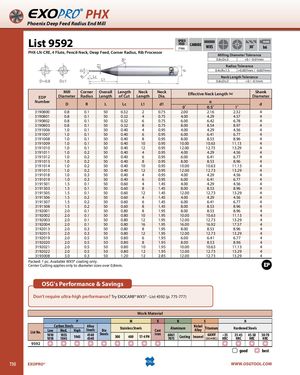

Общий каталог OSG 2018 - 2019 - страница 730

D d1 d PHX Phoenix Deep Feed Radius End Mill List 9592 SPEEDFEEDP986CARBIDE WXS SHANK30˚h6 PHX-LN-CRE, 4 Flute, Pencil-Neck, Deep Feed, Corner Radius, Rib Processor Milling Diameter Tolerance 15° 0.8≤D≤3 +0 / -0.01mm Radius Tolerance 0.4≤R≤1.5 +0.007mm / -0.007mm D=0.8 D≥1 R Lc L1 L Neck Length Tolerance0.8≤D≤3+0 / -0.1mm Mill Corner Overall Length Neck NeckEDPDiameterRadiusLengthof CutLengthDia.Effective Neck Length (le)ShankDiameter Number D R L Lc L1 d1 α d 0˚ 0.5˚ 1˚ 3190800 0.8 0.1 50 0.32 2 0.75 2.00 2.16 2.32 4 3190801 0.8 0.1 50 0.32 4 0.75 4.00 4.29 4.57 4 3190802 0.8 0.1 50 0.32 6 0.75 6.00 6.42 6.78 4 3190803 0.8 0.1 50 0.32 8 0.75 8.00 8.54 8.97 4 3191006 1.0 0.1 50 0.40 4 0.95 4.00 4.29 4.56 4 3191007 1.0 0.1 50 0.40 6 0.95 6.00 6.41 6.77 4 3191008 1.0 0.1 50 0.40 8 0.95 8.00 8.53 8.96 4 3191009 1.0 0.1 50 0.40 10 0.95 10.00 10.63 11.13 4 3191010 1.0 0.1 50 0.40 12 0.95 12.00 12.73 13.29 4 3191011 1.0 0.2 50 0.40 4 0.95 4.00 4.29 4.56 4 3191012 1.0 0.2 50 0.40 6 0.95 6.00 6.41 6.77 4 3191013 1.0 0.2 50 0.40 8 0.95 8.00 8.53 8.96 4 3191014 1.0 0.2 50 0.40 10 0.95 10.00 10.63 11.13 4 3191015 1.0 0.2 50 0.40 12 0.95 12.00 12.73 13.29 4 3191018 1.0 0.3 50 0.40 4 0.95 4.00 4.29 4.56 4 3191019 1.0 0.3 50 0.40 6 0.95 6.00 6.41 6.77 4 3191501 1.5 0.1 50 0.60 4 1.45 4.00 4.29 4.56 4 3191503 1.5 0.1 50 0.60 8 1.45 8.00 8.53 8.96 4 3191505 1.5 0.1 50 0.60 12 1.45 12.00 12.73 13.29 4 3191506 1.5 0.2 50 0.60 4 1.45 4.00 4.29 4.56 4 3191507 1.5 0.2 50 0.60 6 1.45 6.00 6.41 6.77 4 3191508 1.5 0.2 50 0.60 8 1.45 8.00 8.53 8.96 4 3192001 2.0 0.1 50 0.80 8 1.95 8.00 8.53 8.96 4 3192002 2.0 0.1 50 0.80 10 1.95 10.00 10.63 11.13 4 3192003 2.0 0.1 50 0.80 12 1.95 12.00 12.73 13.29 4 3192004 2.0 0.1 50 0.80 16 1.95 16.00 16.92 17.57 4 3192013 2.0 0.3 50 0.80 8 1.95 8.00 8.53 8.96 4 3192015 2.0 0.3 50 0.80 12 1.95 12.00 12.73 13.29 4 3192019 2.0 0.5 50 0.80 6 1.95 6.00 6.41 6.77 4 3192020 2.0 0.5 50 0.80 8 1.95 8.00 8.53 8.96 4 3192021 2.0 0.5 50 0.80 10 1.95 10.00 10.63 11.13 4 3192022 2.0 0.5 50 0.80 12 1.95 12.00 12.73 13.29 4 3193008 3.0 0.3 50 1.20 12 2.85 12.00 12.73 13.29 4 Packed: 1 pc. Available WXS® coating only. Center Cutting applies only to diameter sizes over 0.8mm. OSG's Performance & Savings Don’t require ultra-high performance? Try EXOCARB® WXS® - List 4592 (p. 775-777) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9592 good best 730 EXOPRO® WWW.OSGTOOL.COM
