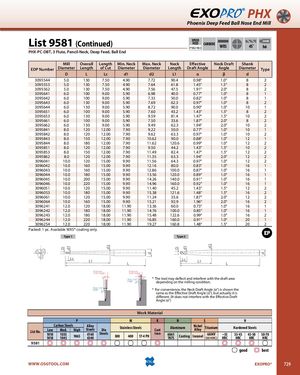

PHX Phoenix Deep Feed Ball Nose End Mill List 9581 (Continued) SPEEDFEEDCARBIDEP982-983WXS SHANK45˚h6 PHX-PC-DBT, 3 Flute, Pencil-Neck, Deep Feed, Ball End Mill Overall Length Min. Neck Max. Neck Neck Effective Neck Draft Shank EDP Number Diameter Length of Cut Diameter Diameter Length Draft Angle Angle Diameter Type D L Lc d1 d2 L1 α β d 3095544 5.0 130 7.50 4.90 7.72 90.4 0.98° 1.0° 8 2 3095553 5.0 130 7.50 4.90 7.64 61.8 1.45° 1.5° 8 2 3095562 5.0 130 7.50 4.90 7.56 47.5 1.91° 2.0° 8 2 3095641 6.0 100 9.00 5.90 6.98 40.0 0.77° 1.0° 8 1 3095642 6.0 100 9.00 5.90 7.33 50.0 0.82° 1.0° 8 1 3095643 6.0 130 9.00 5.90 7.69 62.3 0.97° 1.0° 8 2 3095644 6.0 130 9.00 5.90 8.72 90.0 0.90° 1.0° 10 1 3095651 6.0 100 9.00 5.90 7.60 43.2 1.43° 1.5° 8 2 3095653 6.0 130 9.00 5.90 9.59 81.4 1.47° 1.5° 10 2 3095661 6.0 100 9.00 5.90 7.50 33.6 1.87° 2.0° 8 2 3095662 6.0 130 9.00 5.90 9.49 62.3 1.94° 2.0° 10 2 3095841 8.0 120 12.00 7.90 9.22 50.0 0.77° 1.0° 10 1 3095842 8.0 120 12.00 7.90 9.62 63.3 0.97° 1.0° 10 2 3095843 8.0 150 12.00 7.90 10.62 90.0 0.88° 1.0° 12 1 3095844 8.0 180 12.00 7.90 11.62 120.6 0.99° 1.0° 12 2 3095851 8.0 120 12.00 7.90 9.50 44.2 1.43° 1.5° 10 2 3095853 8.0 150 12.00 7.90 11.49 82.4 1.47° 1.5° 12 2 3095862 8.0 120 12.00 7.90 11.35 63.3 1.94° 2.0° 12 2 3096041 10.0 120 15.00 9.90 11.56 64.3 0.97° 1.0° 12 2 3096042 10.0 160 15.00 9.90 12.16 80.0 0.83° 1.0° 16 1 3096043 10.0 160 15.00 9.90 12.86 100.0 0.87° 1.0° 16 1 3096044 10.0 180 15.00 9.90 13.56 120.0 0.89° 1.0° 16 1 3096045 10.0 200 15.00 9.90 14.26 140.0 0.91° 1.0° 16 1 3096046 10.0 220 15.00 9.90 14.96 160.0 0.92° 1.0° 16 1 3096051 10.0 120 15.00 9.90 11.40 45.2 1.43° 1.5° 12 2 3096053 10.0 180 15.00 9.90 15.38 121.6 1.48° 1.5° 16 2 3096061 10.0 120 15.00 9.90 11.24 35.6 1.87° 2.0° 12 2 3096064 10.0 160 15.00 9.90 15.21 92.9 1.96° 2.0° 16 2 3096241 12.0 120 18.00 11.90 13.36 60.0 0.73° 1.0° 16 1 3096242 12.0 180 18.00 11.90 14.76 100.0 0.85° 1.0° 16 1 3096243 12.0 180 18.00 11.90 15.48 122.6 0.99° 1.0° 16 2 3096244 12.0 220 18.00 11.90 16.85 160.0 0.91° 1.0° 20 1 3096254 12.0 220 18.00 11.90 19.27 160.8 1.48° 1.5° 20 2 Packed: 1 pc. Available WXS® coating only. Type 1 Type 2 Lc L1 L Lc L1 L Effective Effective Draft Angle Draft Angle α° Neck Draft α° * The tool may deflect and interfere with the draft area Angle β° depending on the milling condition. Neck DraftAngleβ° * For convenience, the Neck Draft Angle (α°) is shown thesame as the Effective Draft Angle (α°), but actually it is different. (It does not interfere with the Effective Draft Angle (α°) Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9581 good best WWW.OSGTOOL.COM EXOPRO® 729 D d1 d2 d D d1 d2 d
