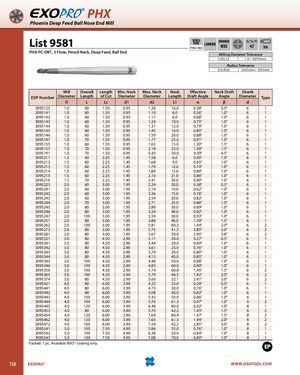

PHX Phoenix Deep Feed Ball Nose End Mill List 9581 SPEEDFEED CARBIDEP982-983WXS SHANK45˚h6 PHX-PC-DBT, 3 Flute, Pencil-Neck, Deep Feed, Ball End Milling Diameter Tolerance 1≤D≤12 + 0 / -0.015mm Radius Tolerance 0.5≤R≤6 +0.01mm / -0.01mm Mill Overall Length Min. Neck Max. Neck Neck Effective Neck Draft Shank EDP Number Diameter Length of Cut Diameter Diameter Length Draft Angle Angle Diameter Type D L Lc d1 d2 L1 α β d 3095125 1.0 60 1.50 0.95 1.20 16.0 0.38° 0.5° 6 1 3095141 1.0 60 1.50 0.95 1.10 6.0 0.56° 1.0° 6 1 3095142 1.0 60 1.50 0.95 1.17 8.0 0.68° 1.0° 6 1 3095143 1.0 60 1.50 0.95 1.24 10.0 0.75° 1.0° 6 1 3095144 1.0 60 1.50 0.95 1.31 12.0 0.79° 1.0° 6 1 3095145 1.0 60 1.50 0.95 1.45 16.0 0.85° 1.0° 6 1 3095146 1.0 60 1.50 0.95 1.59 20.0 0.88° 1.0° 6 1 3095147 1.0 70 1.50 0.95 1.77 25.0 0.91° 1.0° 6 1 3095155 1.0 60 1.50 0.95 1.65 15.0 1.30° 1.5° 6 1 3095157 1.0 70 1.50 0.95 2.18 25.0 1.39° 1.5° 6 1 3095191 1.0 70 1.50 0.95 5.43 30.0 4.30° 4.5° 6 1 3095211 1.5 60 2.25 1.45 1.58 6.0 0.45° 1.0° 6 1 3095212 1.5 60 2.25 1.45 1.68 9.0 0.65° 1.0° 6 1 3095213 1.5 60 2.25 1.45 1.79 12.0 0.74° 1.0° 6 1 3095214 1.5 60 2.25 1.45 1.89 15.0 0.80° 1.0° 6 1 3095215 1.5 60 2.25 1.45 2.10 21.0 0.86° 1.0° 6 1 3095216 1.5 70 2.25 1.45 2.41 30.0 0.90° 1.0° 6 1 3095223 2.0 60 3.00 1.95 2.24 20.0 0.38° 0.5° 6 1 3095241 2.0 60 3.00 1.95 2.19 10.0 0.62° 1.0° 6 1 3095242 2.0 60 3.00 1.95 2.36 15.0 0.76° 1.0° 6 1 3095243 2.0 60 3.00 1.95 2.54 20.0 0.82° 1.0° 6 1 3095244 2.0 70 3.00 1.95 2.71 25.0 0.86° 1.0° 6 1 3095245 2.0 80 3.00 1.95 2.89 30.0 0.89° 1.0° 6 1 3095246 2.0 80 3.00 1.95 3.24 40.0 0.92° 1.0° 6 1 3095247 2.0 100 3.00 1.95 3.59 50.0 0.93° 1.0° 6 1 3095251 2.0 80 3.00 1.95 3.88 40.0 1.39° 1.5° 6 1 3095262 2.0 100 3.00 1.95 5.81 60.3 1.94° 2.0° 6 2 3095273 2.0 80 3.00 1.95 5.75 41.2 2.85° 3.0° 6 2 3095281 2.0 80 3.00 1.95 5.67 30.0 3.95° 3.8° 6 2 3095321 3.0 80 4.50 2.90 3.17 20.0 0.27° 0.5° 6 1 3095341 3.0 80 4.50 2.90 3.44 20.0 0.69° 1.0° 6 1 3095342 3.0 80 4.50 2.90 3.61 25.0 0.76° 1.0° 6 1 3095343 3.0 80 4.50 2.90 3.79 30.0 0.80° 1.0° 6 1 3095344 3.0 80 4.50 2.90 4.13 40.0 0.85° 1.0° 6 1 3095345 3.0 100 4.50 2.90 4.48 50.0 0.88° 1.0° 6 1 3095346 3.0 100 4.50 2.90 4.83 60.0 0.90° 1.0° 6 1 3095356 3.0 100 4.50 2.90 5.74 60.8 1.45° 1.5° 6 2 3095365 3.0 100 4.50 2.90 5.70 46.5 1.92° 2.0° 6 2 3095374 3.0 80 4.50 2.90 5.60 32.1 2.81° 3.0° 6 2 3095421 4.0 80 6.00 3.90 4.23 25.0 0.29° 0.5° 6 1 3095441 4.0 80 6.00 3.90 4.73 30.0 0.76° 1.0° 6 1 3095442 4.0 80 6.00 3.90 5.08 40.0 0.82° 1.0° 6 1 3095443 4.0 100 6.00 3.90 5.43 50.0 0.86° 1.0° 6 1 3095444 4.0 100 6.00 3.90 5.76 61.3 0.97° 1.0° 6 2 3095445 4.0 120 6.00 3.90 6.48 80.0 0.92° 1.0° 8 1 3095453 4.0 80 6.00 3.90 5.70 42.2 1.43° 1.5° 6 2 3095454 4.0 120 6.00 3.90 7.69 80.4 1.47° 1.5° 8 2 3095462 4.0 120 6.00 3.90 7.63 61.3 1.94° 2.0° 8 2 3095472 4.0 100 6.00 3.90 7.50 42.2 2.85° 3.0° 8 2 3095541 5.0 100 7.50 4.90 5.86 35.0 0.76° 1.0° 8 1 3095542 5.0 100 7.50 4.90 6.38 50.0 0.84° 1.0° 8 1 3095543 5.0 130 7.50 4.90 7.08 70.0 0.89° 1.0° 8 1 Packed: 1 pc. Available WXS® coating only. 728 EXOPRO® WWW.OSGTOOL.COM
