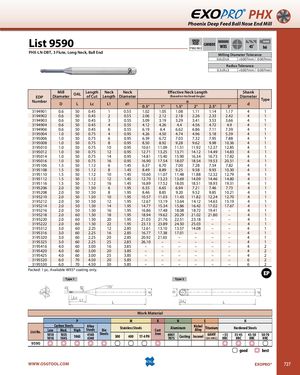

PHX Phoenix Deep Feed Ball Nose End Mill List 9590 SPEEDFEEDCARBIDEP982-983WXS SHANK45˚h6 PHX-LN-DBT, 3 Flute, Long Neck, Ball End Milling Diameter Tolerance 0.6≤D≤6 +0.007mm / -0.007mm Radius Tolerance 0.3≤R≤3 +0.007mm / -0.007mm EDP MillDiameter OAL Lengthof CutNeck NeckLengthDiameterNumberDLLcL1d10.5°Effective Neck Length(Based on Inclined Angle)α1°1.5°2°2.5°ShankDiameterType3°d 3194901 0.6 50 0.45 1 0.55 1.02 1.05 1.08 1.11 1.14 1.17 4 1 3194902 0.6 50 0.45 2 0.55 2.06 2.12 2.18 2.26 2.33 2.42 4 1 3194903 0.6 50 0.45 3 0.55 3.09 3.19 3.29 3.41 3.53 3.66 4 1 3194904 0.6 50 0.45 4 0.55 4.12 4.26 4.4 4.56 4.72 4.9 4 1 3194906 0.6 50 0.45 6 0.55 6.19 6.4 6.62 6.86 7.11 7.39 4 1 3195004 1.0 50 0.75 4 0.95 4.26 4.50 4.74 4.96 5.18 5.39 4 1 3195006 1.0 50 0.75 6 0.95 6.39 6.72 7.03 7.32 7.95 7.88 4 1 3195008 1.0 50 0.75 8 0.95 8.50 8.92 9.28 9.62 9.98 10.36 4 1 3195010 1.0 50 0.75 10 0.95 10.61 11.09 11.51 11.92 12.37 12.85 4 1 3195012 1.0 50 0.75 12 0.95 12.71 13.25 13.71 14.12 14.49 14.83 4 1 3195014 1.0 50 0.75 14 0.95 14.81 15.40 15.90 16.34 16.73 17.82 4 1 3195016 1.0 50 0.75 16 0.95 16.90 17.54 18.07 18.54 19.53 20.31 4 1 3195106 1.5 50 1.12 6 1.45 6.37 6.70 7.00 7.28 7.54 7.82 4 1 3195108 1.5 50 1.12 8 1.45 8.49 8.89 9.25 9.58 9.93 10.30 4 1 3195110 1.5 50 1.12 10 1.45 10.60 11.07 11.48 11.88 12.32 12.79 4 1 3195112 1.5 50 1.12 12 1.45 12.70 13.23 13.69 14.09 14.46 14.80 4 1 3195116 1.5 50 1.12 16 1.45 16.89 17.52 18.05 18.51 18.93 19.31 4 1 3195206 2.0 50 1.50 6 1.95 6.35 6.65 6.94 7.21 7.46 7.73 4 1 3195208 2.0 50 1.50 8 1.95 8.46 8.85 9.20 9.52 9.85 10.21 4 1 3195210 2.0 50 1.50 10 1.95 10.57 11.03 11.43 11.82 12.24 12.70 4 1 3195212 2.0 50 1.50 12 1.95 12.67 13.19 13.64 14.12 14.63 15.19 4 1 3195214 2.0 50 1.50 14 1.95 14.77 15.34 15.86 16.42 17.02 17.67 4 1 3195216 2.0 50 1.50 16 1.95 16.86 17.48 18.08 18.72 19.41 – 4 1 3195218 2.0 60 1.50 18 1.95 18.94 19.62 20.29 21.02 21.80 – 4 1 3195220 2.0 60 1.50 20 1.95 21.03 21.76 22.51 23.18 – – 4 1 3195222 2.0 60 1.50 22 1.95 23.13 23.89 24.50 25.03 – – 4 1 3195312 3.0 60 2.25 12 2.85 12.61 13.10 13.57 14.08 – – 4 1 3195316 3.0 60 2.25 16 2.85 16.77 17.38 17.01 – – – 4 1 3195320 3.0 60 2.25 20 2.85 20.92 21.65 – – – – 4 1 3195325 3.0 60 2.25 25 2.85 26.10 – – – – – 4 1 3195416 4.0 60 3.00 16 3.85 – – – – – – 4 2 3195420 4.0 60 3.00 20 3.85 – – – – – – 4 2 3195425 4.0 60 3.00 25 3.85 – – – – – – 4 2 3195520 6.0 70 4.50 20 5.85 – – – – – – 6 2 3195530 6.0 70 4.50 30 5.85 – – – – – – 6 2 Packed: 1 pc. Available WXS® coating only. Type 1 Type 2 15˚ Lc L1 L Lc L Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9590 good best WWW.OSGTOOL.COM EXOPRO® 727 D d1 d D d
