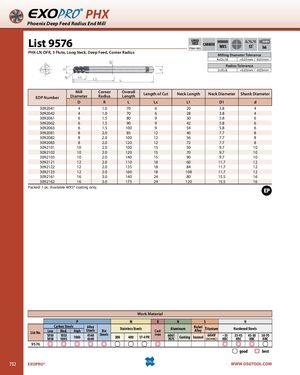

d1 PHX Phoenix Deep Feed Radius End Mill List 9576 SPEEDFEED CARBIDEP984-985WXS SHANK55˚h6 PHX-LN-DFR, 3 Flute, Long Neck, Deep Feed, Corner Radius Milling Diameter Tolerance 4≤D≤16 +0.01mm / -0.01mm Radius Tolerance 2≤R≤8 +0.03mm / -0.03mm EDP Number MillDiameter CornerRadius OverallLength Length of Cut Neck Length Neck Diameter Shank Diameter D R L Lc L1 D1 d 3092041 4 1.0 70 6 20 3.8 4 3092042 4 1.0 70 6 28 3.8 4 3092061 6 1.5 80 9 30 5.8 6 3092062 6 1.5 90 9 42 5.8 6 3092063 6 1.5 100 9 54 5.8 6 3092081 8 2.0 85 12 40 7.7 8 3092082 8 2.0 100 12 56 7.7 8 3092083 8 2.0 120 12 72 7.7 8 3092101 10 2.0 100 15 50 9.7 10 3092102 10 2.0 120 15 70 9.7 10 3092103 10 2.0 140 15 90 9.7 10 3092121 12 2.0 110 18 60 11.7 12 3092122 12 2.0 135 18 84 11.7 12 3092123 12 2.0 160 18 108 11.7 12 3092161 16 3.0 140 24 80 15.5 16 3092162 16 3.0 175 24 120 15.5 16 Packed: 1 pc. Available WXS® coating only. Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless SteelsCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 9576 good best 732 EXOPRO® WWW.OSGTOOL.COM
