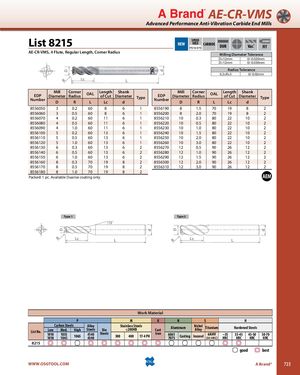

Общий каталог OSG 2018 - 2019 - страница 723

D D d d D d AE-CR-VMS Advanced Performance Anti-Vibration Carbide End Mills List 8215 SPEEDNEWFEEDCARBIDEP978-979DUR SHRINKVar.˚FIT AE-CR-VMS, 4 Flute, Regular Length, Corner Radius Milling Diameter Tolerance D≤12mm 0/-0.020mm D>12mm 0/-0.030mm Radius Tolerance 0.2≤R≤3 0/-0.02mm R Lc L Mill CornerEDPDiameterRadiusNumberDROALLLengthShankof CutDiameterTypeLcdMill CornerEDPDiameterRadiusNumberDROALLLengthShankof CutDiameterTypeLcd 8556050 3 0.2 60 8 6 1 8556190 8 1.5 70 19 8 2 8556060 3 0.5 60 8 6 1 8556200 8 2.0 70 19 8 2 8556070 4 0.2 60 11 6 1 8556210 10 0.3 80 22 10 2 8556080 4 0.5 60 11 6 1 8556220 10 0.5 80 22 10 2 8556090 4 1.0 60 11 6 1 8556230 10 1.0 80 22 10 2 8556100 5 0.2 60 13 6 1 8556240 10 1.5 80 22 10 2 8556110 5 0.5 60 13 6 1 8556250 10 2.0 80 22 10 2 8556120 5 1.0 60 13 6 1 8556260 10 3.0 80 22 10 2 8556130 6 0.3 60 13 6 2 8556270 12 0.5 90 26 12 2 8556140 6 0.5 60 13 6 2 8556280 12 1.0 90 26 12 2 8556150 6 1.0 60 13 6 2 8556290 12 1.5 90 26 12 2 8556160 8 0.3 70 19 8 2 8556300 12 2.0 90 26 12 2 8556170 8 0.5 70 19 8 2 8556310 12 3.0 90 26 12 2 8556180 8 1.0 70 19 8 2 Packed: 1 pc. Available Duarise coating only. AEM Type 1 Type 2 15˚ R Lc L R Lc L Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless Steels≤200HBCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 8215 good best WWW.OSGTOOL.COM A Brand® 723
