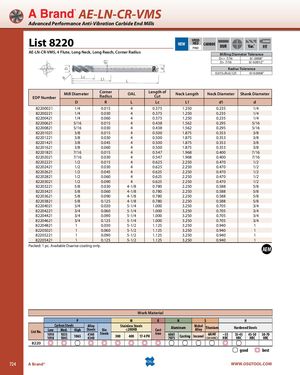

Общий каталог OSG 2018 - 2019 - страница 724

D d1 d AE-LN-CR-VMS Advanced Performance Anti-Vibration Carbide End Mills List 8220 SPEEDNEWFEEDP980CARBIDEDUR SHRINKVar.˚FIT AE-LN-CR-VMS, 4 Flute, Long Neck, Long Reach, Corner Radius Milling Diameter Tolerance D<= 7/16 0/-.0008" D> 7/16 0/-0.0012" Radius Tolerance 0.015≤R≤0.125 0/-0.0008" R Lc L1 L Mill DiameterEDP Number CornerRadius OAL Length ofCut Neck Length Neck Diameter Shank Diameter D R L Lc L1 d1 d 82200021 1/4 0.015 4 0.375 1.250 0.235 1/4 82200221 1/4 0.030 4 0.375 1.250 0.235 1/4 82200421 1/4 0.060 4 0.375 1.250 0.235 1/4 82200621 5/16 0.015 4 0.438 1.562 0.295 5/16 82200821 5/16 0.030 4 0.438 1.562 0.295 5/16 82201021 3/8 0.015 4 0.500 1.875 0.353 3/8 82201221 3/8 0.030 4 0.500 1.875 0.353 3/8 82201421 3/8 0.045 4 0.500 1.875 0.353 3/8 82201621 3/8 0.060 4 0.500 1.875 0.353 3/8 82201821 7/16 0.015 4 0.547 1.968 0.400 7/16 82202021 7/16 0.030 4 0.547 1.968 0.400 7/16 82202221 1/2 0.015 4 0.625 2.250 0.470 1/2 82202421 1/2 0.030 4 0.625 2.250 0.470 1/2 82202621 1/2 0.045 4 0.625 2.250 0.470 1/2 82202821 1/2 0.060 4 0.625 2.250 0.470 1/2 82203021 1/2 0.090 4 0.625 2.250 0.470 1/2 82203221 5/8 0.030 4-1/8 0.780 2.250 0.588 5/8 82203421 5/8 0.060 4-1/8 0.780 2.250 0.588 5/8 82203621 5/8 0.090 4-1/8 0.780 2.250 0.588 5/8 82203821 5/8 0.125 4-1/8 0.780 2.250 0.588 5/8 82204021 3/4 0.030 5-1/4 1.000 3.250 0.705 3/4 82204221 3/4 0.060 5-1/4 1.000 3.250 0.705 3/4 82204421 3/4 0.090 5-1/4 1.000 3.250 0.705 3/4 82204621 3/4 0.125 5-1/4 1.000 3.250 0.705 3/4 82204821 1 0.030 5-1/2 1.125 3.250 0.940 1 82205021 1 0.060 5-1/2 1.125 3.250 0.940 1 82205221 1 0.090 5-1/2 1.125 3.250 0.940 1 82205421 1 0.125 5-1/2 1.125 3.250 0.940 1 Packed: 1 pc. Available Duarise coating only. AEM Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie106541404340SteelsStainless Steels≤200HBCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 8220 good best 724 A Brand® WWW.OSGTOOL.COM
