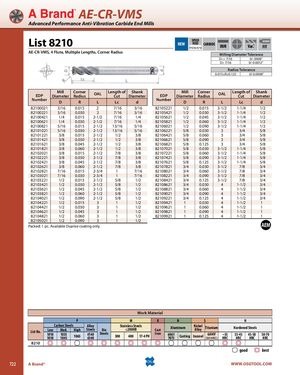

D d AE-CR-VMS Advanced Performance Anti-Vibration Carbide End Mills List 8210 SPEEDNEWFEEDCARBIDEP978-979DUR SHRINKVar.˚FIT AE-CR-VMS, 4 Flute, Multiple Lengths, Corner Radius Milling Diameter Tolerance D<= 7/16 0/-.0008" D> 7/16 0/-0.0012" Radius Tolerance 0.015≤R≤0.125 0/-0.0008" R Lc L EDP Mill CornerDiameterRadiusOALLength of ShankCutDiameter EDP Mill CornerDiameterRadiusOAL Length of ShankCutDiameter Number D R L Lc d Number D R L Lc d 82100021 3/16 0.015 2 7/16 3/16 82105221 1/2 0.015 3-1/2 1-1/4 1/2 82100221 3/16 0.030 2 7/16 3/16 82105421 1/2 0.030 3-1/2 1-1/4 1/2 82100421 1/4 0.015 2-1/2 7/16 1/4 82105621 1/2 0.045 3-1/2 1-1/4 1/2 82100621 1/4 0.030 2-1/2 7/16 1/4 82105821 1/2 0.060 3-1/2 1-1/4 1/2 82100821 5/16 0.015 2-1/2 13/16 5/16 82106021 1/2 0.090 3-1/2 1-1/4 1/2 82101021 5/16 0.030 2-1/2 13/16 5/16 82106221 5/8 0.030 3 3/4 5/8 82101221 3/8 0.015 2-1/2 1/2 3/8 82106421 5/8 0.060 3 3/4 5/8 82101421 3/8 0.030 2-1/2 1/2 3/8 82106621 5/8 0.090 3 3/4 5/8 82101621 3/8 0.045 2-1/2 1/2 3/8 82106821 5/8 0.125 3 3/4 5/8 82101821 3/8 0.060 2-1/2 1/2 3/8 82107021 5/8 0.030 3-1/2 1-1/4 5/8 82102021 3/8 0.015 2-1/2 7/8 3/8 82107221 5/8 0.060 3-1/2 1-1/4 5/8 82102221 3/8 0.030 2-1/2 7/8 3/8 82107421 5/8 0.090 3-1/2 1-1/4 5/8 82102421 3/8 0.045 2-1/2 7/8 3/8 82107621 5/8 0.125 3-1/2 1-1/4 5/8 82102621 3/8 0.060 2-1/2 7/8 3/8 82107821 3/4 0.030 3-1/2 7/8 3/4 82102821 7/16 0.015 2-3/4 1 7/16 82108021 3/4 0.060 3-1/2 7/8 3/4 82103021 7/16 0.030 2-3/4 1 7/16 82108221 3/4 0.090 3-1/2 7/8 3/4 82103221 1/2 0.015 2-1/2 5/8 1/2 82108421 3/4 0.125 3-1/2 7/8 3/4 82103421 1/2 0.030 2-1/2 5/8 1/2 82108621 3/4 0.030 4 1-1/2 3/4 82103621 1/2 0.045 2-1/2 5/8 1/2 82108821 3/4 0.060 4 1-1/2 3/4 82103821 1/2 0.060 2-1/2 5/8 1/2 82109021 3/4 0.090 4 1-1/2 3/4 82104021 1/2 0.090 2-1/2 5/8 1/2 82109221 3/4 0.125 4 1-1/2 3/4 82104221 1/2 0.015 3 1 1/2 82109421 1 0.030 4 1-1/2 1 82104421 1/2 0.030 3 1 1/2 82109621 1 0.060 4 1-1/2 1 82104621 1/2 0.045 3 1 1/2 82109821 1 0.090 4 1-1/2 1 82104821 1/2 0.060 3 1 1/2 82109921 1 0.125 4 1-1/2 1 82105021 1/2 0.090 3 1 1/2 Packed: 1 pc. Available Duarise coating only. AEM Work Material P M K N S H Carbon Steels AlloyList No.Low10101018Med.10351045HighSteelsDie10654140Steels4340Stainless Steels≤200HBCast30040017-4 PHIronAluminumNickelAlloyTitaniumHardened Steels60617075CastingInconel6Al4V(30 HRC)~35HRC35-4545-5050-70HRCHRCHRC 8210 good best 722 A Brand® WWW.OSGTOOL.COM
