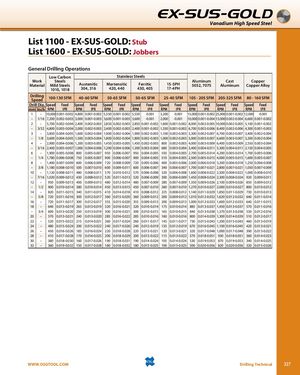

EX-SUS-GOLD Vanadium High Speed Steel List 1100 - EX-SUS-GOLD: Stub List 1600 - EX-SUS-GOLD: Jobbers General Drilling Operations Low Carbon Stainless Steels Work Steels Aluminum Cast Copper Material Mild Steels Austenitic Martensitic Ferritic 15-5PH 5052, 7075 Aluminum Copper Alloy 1010, 1018 304, 316 420, 440 430, 405 17-4PH DrillingSpeed100-130 SFM 40-60 SFM 50-65 SFM 50-65 SFM 25-40 SFM 105 - 205 SFM 205-325 SFM 80 - 160 SFM Drill Dia. Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed mm Inch RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR 1 – 10,000 0.001-0.002 4,800 0.001-0.002 5,550 0.001-0.002 5,550 -0.001 3,200 -0.001 15,000 0.001-0.002 25,000 0.001-0.002 12,000 -0.001 – 1/16 7,200 0.002-0.003 3,000 0.001-0.003 3,600 0.001-0.003 3,600 -0.001 2,000 -0.001 10,000 0.001-0.004 13,000 0.002-0.004 6,600 0.001-0.002 2 – 5,700 0.002-0.004 2,400 0.002-0.003 2,850 0.002-0.003 2,850 0.001-0.002 1,600 0.001-0.002 8,000 0.002-0.005 10,000 0.002-0.005 5,100 0.001-0.002 – 3/32 4,800 0.003-0.004 2,000 0.002-0.003 2,400 0.002-0.003 2,400 0.001-0.002 1,350 0.001-0.002 6,700 0.002-0.006 8,400 0.002-0.006 4,300 0.001-0.003 3 – 3,850 0.004-0.005 1,600 0.002-0.004 1,900 0.002-0.004 1,900 0.002-0.003 1,100 0.002-0.003 5,300 0.002-0.007 6,700 0.002-0.007 3,400 0.002-0.004 – 1/8 3,600 0.004-0.005 1,500 0.003-0.004 1,800 0.002-0.004 1,800 0.002-0.003 1,000 0.002-0.003 5,000 0.003-0.007 6,600 0.003-0.007 3,200 0.002-0.004 4 – 2,900 0.004-0.006 1,200 0.003-0.005 1,450 0.003-0.005 1,450 0.002-0.003 800 0.002-0.003 4,000 0.003-0.009 6,400 0.003-0.009 2,550 0.003-0.004 – 3/16 2,400 0.005-0.007 1,000 0.004-0.006 1,200 0.004-0.006 1,200 0.003-0.004 680 0.003-0.004 3,400 0.004-0.011 5,300 0.004-0.011 2,150 0.004-0.005 6 – 1,900 0.005-0.008 800 0.005-0.007 950 0.006-0.007 950 0.004-0.005 550 0.004-0.005 2,700 0.005-0.014 4,200 0.005-0.014 1,700 0.005-0.006 – 1/4 1,780 0.006-0.008 750 0.005-0.007 900 0.006-0.007 900 0.004-0.005 510 0.004-0.005 2,500 0.005-0.015 4,000 0.005-0.015 1,600 0.005-0.007 8 – 1,400 0.007-0.009 600 0.006-0.009 720 0.008-0.009 720 0.005-0.006 400 0.005-0.006 2,000 0.006-0.018 3,200 0.006-0.018 1,250 0.006-0.008 – 3/8 1,180 0.008-0.010 500 0.007-0.010 600 0.009-0.011 600 0.006-0.007 340 0.006-0.007 1,700 0.007-0.021 2,800 0.007-0.021 1,050 0.007-0.009 10 – 1,120 0.008-0.011 480 0.008-0.011 570 0.010-0.012 570 0.006-0.008 320 0.006-0.008 1,600 0.008-0.022 2,500 0.008-0.022 1,000 0.008-0.010 – 7/16 1,020 0.009-0.012 430 0.008-0.012 520 0.011-0.013 520 0.006-0.009 300 0.006-0.009 1,450 0.008-0.024 2,300 0.008-0.024 920 0.009-0.011 12 – 950 0.009-0.013 400 0.009-0.013 480 0.012-0.014 480 0.007-0.009 280 0.007-0.009 1,350 0.009-0.026 2,100 0.009-0.026 850 0.009-0.012 – 1/2 900 0.010-0.014 380 0.010-0.014 450 0.013-0.015 450 0.007-0.010 260 0.007-0.010 1,270 0.010-0.027 2,000 0.010-0.027 800 0.010-0.012 14 – 820 0.011-0.015 340 0.011-0.015 410 0.014-0.018 410 0.008-0.012 225 0.008-0.012 1,140 0.011-0.029 1,850 0.011-0.029 730 0.010-0.013 – 5/8 720 0.011-0.016 300 0.012-0.017 360 0.015-0.020 360 0.009-0.012 200 0.009-0.012 1,010 0.012-0.032 1,620 0.012-0.032 640 0.011-0.014 16 – 720 0.011-0.017 300 0.012-0.017 355 0.015-0.020 355 0.009-0.013 200 0.009-0.013 1,000 0.012-0.033 1,600 0.012-0.033 640 0.011-0.015 18 – 640 0.013-0.019 265 0.013-0.019 320 0.016-0.021 320 0.010-0.014 175 0.010-0.014 885 0.013-0.037 1,450 0.013-0.037 570 0.011-0.016 – 3/4 600 0.013-0.020 250 0.013-0.019 300 0.016-0.021 300 0.010-0.015 165 0.010-0.015 840 0.013-0.038 1,370 0.013-0.038 530 0.012-0.016 20 – 570 0.013-0.021 240 0.013-0.020 285 0.016-0.022 285 0.010-0.016 160 0.010-0.016 800 0.014-0.039 1,300 0.014-0.039 510 0.012-0.017 22 – 520 0.015-0.022 215 0.014-0.021 260 0.017-0.024 260 0.011-0.017 145 0.011-0.017 730 0.015-0.043 1,200 0.015-0.043 460 0.013-0.019 24 – 480 0.015-0.024 200 0.015-0.022 240 0.017-0.026 240 0.012-0.019 135 0.012-0.019 670 0.016-0.045 1,100 0.016-0.045 420 0.013-0.021 26 – 450 0.016-0.026 185 0.016-0.024 220 0.018-0.028 220 0.013-0.021 120 0.013-0.021 320 0.017-0.048 1,000 0.017-0.048 390 0.013-0.022 28 – 410 0.017-0.028 170 0.016-0.025 200 0.018-0.029 200 0.013-0.022 115 0.013-0.022 570 0.018-0.051 930 0.018-0.051 360 0.014-0.023 30 – 380 0.018-0.030 160 0.017-0.026 190 0.018-0.031 190 0.014-0.024 105 0.014-0.024 530 0.019-0.053 870 0.019-0.053 340 0.014-0.025 32 – 360 0.019-0.032 150 0.017-0.028 180 0.018-0.032 180 0.015-0.025 100 0.015-0.025 500 0.020-0.056 820 0.020-0.056 320 0.015-0.026 WWW.OSGTOOL.COM Drilling Technical 327
