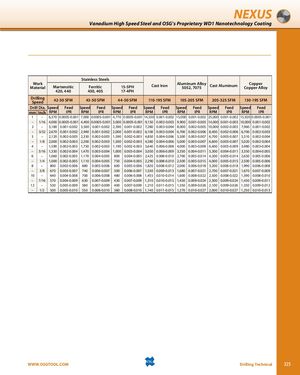

Общий каталог OSG 2018 - 2019 - страница 325

NEXUS Vanadium High Speed Steel and OSG’s Proprietary WD1 Nanotechnology Coating Stainless Steels WorkMaterialMartensitic Ferritic 15-5PH Cast Iron Aluminum Alloy5052, 7075Cast Aluminum CopperCopper Alloy 420, 440 430, 405 17-4PH DrillingSpeed42-50 SFM 43-50 SFM 44-50 SFM 110-195 SFM 105-205 SFM 205-325 SFM 130-195 SFM Drill Dia. Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed mm Inch RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR 1 – 6,370 0.0005-0.001 7,000 0.0005-0.001 4,770 0.0005-0.001 14,550 0.001-0.002 15,000 0.001-0.002 25,000 0.001-0.002 15,920 0.0005-0.001 – 1/16 4,000 0.0005-0.001 4,400 0.0005-0.001 3,000 0.0005-0.001 9,150 0.002-0.003 9,900 0.001-0.003 14,000 0.001-0.003 10,000 0.001-0.002 2 – 3,180 0.001-0.002 3,500 0.001-0.002 2,390 0.001-0.002 7,280 0.003-0.004 8,000 0.002-0.005 10,000 0.002-0.005 7,960 0.001-0.002 – 3/32 2,670 0.001-0.002 2,940 0.001-0.002 2,000 0.001-0.002 6,100 0.003-0.004 6,700 0.002-0.006 8,400 0.002-0.006 6,700 0.002-0.003 3 – 2,120 0.002-0.003 2,330 0.002-0.003 1,590 0.002-0.003 4,850 0.004-0.006 5,300 0.003-0.007 6,700 0.003-0.007 5,310 0.002-0.004 – 1/8 2,000 0.002-0.003 2,200 0.002-0.003 1,500 0.002-0.003 4,580 0.004-0.006 5,000 0.003-0.007 6,600 0.003-0.007 5,020 0.002-0.004 4 – 1,590 0.002-0.003 1,750 0.002-0.003 1,190 0.002-0.003 3,640 0.006-0.008 4,000 0.003-0.009 6,400 0.003-0.009 3,980 0.003-0.004 – 3/16 1,330 0.002-0.004 1,470 0.003-0.004 1,000 0.003-0.004 3,050 0.006-0.009 3,350 0.004-0.011 5,300 0.004-0.011 3,350 0.004-0.005 6 – 1,060 0.002-0.005 1,170 0.004-0.005 800 0.004-0.005 2,425 0.008-0.010 2,700 0.005-0.014 4,200 0.005-0.014 2,650 0.005-0.006 – 1/4 1,000 0.002-0.005 1,110 0.004-0.005 750 0.004-0.005 2,290 0.008-0.010 2,500 0.005-0.015 4,000 0.005-0.015 2,500 0.005-0.006 8 – 800 0.003-0.006 880 0.005-0.006 600 0.005-0.006 1,820 0.008-0.012 2,000 0.006-0.018 3,200 0.006-0.018 1,990 0.006-0.008 – 3/8 670 0.003-0.007 740 0.006-0.007 500 0.006-0.007 1,530 0.009-0.013 1,680 0.007-0.021 2,700 0.007-0.021 1,670 0.007-0.009 10 – 640 0.004-0.008 700 0.006-0.008 480 0.006-0.008 1,455 0.010-0.014 1,600 0.008-0.022 2,500 0.008-0.022 1,590 0.008-0.010 – 7/16 570 0.004-0.009 630 0.007-0.009 430 0.007-0.009 1,310 0.010-0.015 1,450 0.009-0.024 2,300 0.009-0.024 1,430 0.009-0.011 12 – 530 0.005-0.009 580 0.007-0.009 400 0.007-0.009 1,210 0.011-0.015 1,350 0.009-0.026 2,100 0.009-0.026 1,330 0.009-0.012 – 1/2 500 0.005-0.010 550 0.008-0.010 380 0.008-0.010 1,140 0.011-0.015 1,270 0.010-0.027 2,000 0.010-0.027 1,250 0.010-0.013 WWW.OSGTOOL.COM Drilling Technical 325
