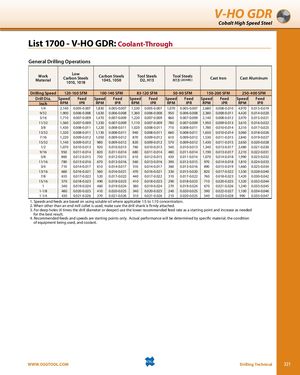

Общий каталог OSG 2018 - 2019 - страница 321

V-HO GDR Cobalt High Speed Steel List 1700 - V-HO GDR: Coolant-Through General Drilling Operations WorkMaterial LowCarbon Steels1010, 1018Carbon Steels1045, 1050Tool SteelsD2, H13Tool SteelsH13 (20 HRC)Cast Iron Cast Aluminum Drilling Speed 120-160 SFM 100-140 SFM 83-120 SFM 50-90 SFM 150-200 SFM 250-400 SFM Drill Dia. Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Speed Feed Inch RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR RPM IPR 1/4 2,140 0.005-0.007 1,830 0.005-0.007 1,530 0.005-0.007 1,070 0.005-0.007 2,680 0.008-0.010 4,970 0.013-0.019 9/32 1,900 0.006-0.008 1,630 0.006-0.008 1,360 0.006-0.008 950 0.006-0.008 2,380 0.008-0.011 4,420 0.014-0.020 5/16 1,710 0.007-0.009 1,470 0.007-0.009 1,220 0.007-0.009 860 0.007-0.009 2,140 0.008-0.012 3,970 0.015-0.021 11/32 1,560 0.007-0.009 1,330 0.007-0.009 1,110 0.007-0.009 780 0.007-0.009 1,950 0.009-0.013 3,610 0.016-0.022 3/8 1,430 0.008-0.011 1,220 0.008-0.011 1,020 0.008-0.011 710 0.008-0.011 1,780 0.010-0.014 3,310 0.017-0.025 13/32 1,320 0.008-0.011 1,130 0.008-0.011 940 0.008-0.011 660 0.008-0.011 1,650 0.010-0.014 3,060 0.018-0.026 7/16 1,220 0.009-0.012 1,050 0.009-0.012 870 0.009-0.012 610 0.009-0.012 1,530 0.011-0.015 2,840 0.019-0.027 15/32 1,140 0.009-0.012 980 0.009-0.012 820 0.009-0.012 570 0.009-0.012 1,430 0.011-0.015 2,650 0.020-0.028 1/2 1,070 0.010-0.013 920 0.010-0.013 760 0.010-0.013 540 0.010-0.013 1,340 0.013-0.017 2,480 0.021-0.030 9/16 950 0.011-0.014 820 0.011-0.014 680 0.011-0.014 480 0.011-0.014 1,190 0.013-0.017 2,210 0.022-0.031 5/8 860 0.012-0.015 730 0.012-0.015 610 0.012-0.015 430 0.011-0.014 1,070 0.014-0.018 1,990 0.023-0.032 11/16 780 0.013-0.016 670 0.013-0.016 560 0.013-0.016 390 0.012-0.015 970 0.014-0.018 1,810 0.024-0.033 3/4 710 0.014-0.017 610 0.014-0.017 510 0.014-0.017 360 0.013-0.016 890 0.015-0.019 1,660 0.025-0.034 13/16 660 0.016-0.021 560 0.016-0.021 470 0.016-0.021 330 0.015-0.020 820 0.017-0.022 1,530 0.028-0.040 7/8 610 0.017-0.022 520 0.017-0.022 440 0.017-0.022 310 0.017-0.022 760 0.018-0.023 1,420 0.030-0.042 15/16 570 0.018-0.023 490 0.018-0.023 410 0.018-0.023 290 0.018-0.023 710 0.020-0.025 1,320 0.032-0.044 1 540 0.019-0.024 460 0.019-0.024 380 0.019-0.024 270 0.019-0.024 670 0.021-0.026 1,240 0.033-0.045 1-1/8 480 0.020-0.025 410 0.020-0.025 340 0.020-0.025 240 0.020-0.025 590 0.022-0.027 1,100 0.034-0.046 1-1/4 430 0.021-0.026 370 0.021-0.026 310 0.021-0.026 210 0.020-0.025 540 0.023-0.028 990 0.035-0.047 1. Speeds and feeds are based on using soluble oil where applicable 1:5 to 1:10 concentration. 2. When other than an end mill collet is used, make sure the drill shank is firmly attached. 3. For deep holes (4 times the drill diameter or deeper) use the lower recommended feed rate as a starting point and increase as needed for the best result. 4. Recommended feeds and speeds are starting points only. Actual performance will be determined by specific material, the condition of equipment being used, and coolant. WWW.OSGTOOL.COM Drilling Technical 321
