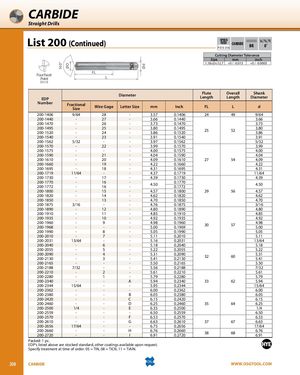

140° ØD Ød CARBIDE Straight Drills List 200 (Continued) SPEEDFEED CARBIDEP315-316BR 0˚ Cutting Diameter Tolerance Size mm inch 1.18≤D≤12.7 +0 / -0.013 +0 / -0.0005 Four FacetPoint FL L (D≤1.5) EDP Diameter Flute Overall ShankLengthLengthDiameter Number FractionalSizeWire Gage Letter Size mm Inch FL L d 200-1406 9/64 28 - 3.57 0.1406 24 49 9/64 200-1440 - 27 - 3.66 0.1440 3.66 200-1470 - 26 - 3.73 0.1470 3.73 200-1495 -200-1520- 2524 -- 3.80 0.14953.860.152025 52 3.803.86 200-1540 - 23 - 3.91 0.1540 3.91 200-1562 5/32 - - 3.97 0.1562 5/32 200-1570 - 22 - 3.99 0.1570 3.99 200-1575 - - - 4.00 0.1575 4.00 200-1590 - 21 - 4.04 0.1590 4.04 200-1610 - 20 - 4.09 0.1610 27 54 4.09 200-1660 - 19 - 4.22 0.1660 4.22 200-1695 - 18 - 4.31 0.1695 4.31 200-1719 11/64 - - 4.37 0.1719 11/64 200-1730 - 17 - 4.39 0.1730 4.39 200-1770 -200-1772- 1616 -- 4.50 0.17700.1772 4.50 200-1800 - 15 - 4.57 0.1800 29 56 4.57 200-1820 - 14 - 4.62 0.1820 4.62 200-1850 - 13 - 4.70 0.1850 4.70 200-1875 3/16 - - 4.76 0.1875 3/16 200-1890 - 12 - 4.80 0.1890 4.80 200-1910 - 11 - 4.85 0.1910 4.85 200-1935 - 10 - 4.92 0.1935 4.92 200-1960 -200-1968- 9- -- 4.98 0.19605.000.196930 57 4.985.00 200-1990 - 8 - 5.05 0.1990 5.05 200-2010 - 7 - 5.11 0.2010 5.11 200-2031 13/64 - - 5.16 0.2031 13/64 200-2040 - 6 - 5.18 0.2040 5.18 200-2055 - 5 - 5.22 0.2055 5.22 200-2090 -200-2130- 43 -- 5.31 0.20905.410.213032 60 5.315.41 200-2165 - - - 5.50 0.2165 5.50 200-2188 7/32 - - 5.56 0.2188 7/32 200-2210 - 2 - 5.61 0.2210 5.61 200-2280 - 1 - 5.79 0.2280 5.79 200-2340 - - A 5.94 0.2340 33 62 5.94 200-2344 15/64 - - 5.95 0.2344 15/64 200-2362 - - - 6.00 0.2362 6.00 200-2380 - - B 6.05 0.2380 6.05 200-2420 - - C 6.15 0.2420 6.15 200-2460 - - D 6.25 0.2460 35 64 6.25 200-2500 1/4 - E 6.35 0.2500 1/4 200-2559 - - - 6.50 0.2559 6.50 200-2570 - - F 6.53 0.2570 6.53 200-2610 - - G 6.63 0.2610 37 67 6.63 200-2656 17/64 - - 6.75 0.2656 17/64 200-2660 -200-2720- -- HI 6.76 0.26606.910.272038 68 6.766.91 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order: 05 = TiN, 08 = TiCN, 11 = TiAlN. 208 CARBIDE WWW.OSGTOOL.COM
