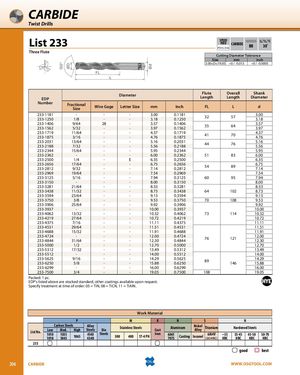

List 233
SPEED
FEED CARBIDE BR 30˚
P315-316 Three Flute Cutting Diameter Tolerance
Size mm inch
3.00≤D≤19.05 +0 / -0.013 +0 / -0.0005 FL L
| Diameter | Flute | Overall | Shank | |
| EDP | Length | Length | Diameter |
Number Fractional
| Size | Wire Gage | Letter Size | mm | Inch | FL | L | d | |
| 233-1181 | - | - | - | 3.00 | 0.1181 | 32 | 57 | 3.00 |
| 233-1250 | 1/8 | - | - | 3.18 | 0.1250 | 3.18 | ||
| 233-1406 | 9/64 | 28 | - | 3.57 | 0.1406 | 35 | 64 | 3.57 |
| 233-1562 | 5/32 | - | - | 3.97 | 0.1562 | 3.97 | ||
| 233-1719 | 11/64 | - | - | 4.37 | 0.1719 | 41 | 70 | 4.37 |
| 233-1875 | 3/16 | - | - | 4.76 | 0.1875 | 4.76 | ||
| 233-2031 | 13/64 | - | - | 5.16 | 0.2031 | 44 | 76 | 5.16 |
| 233-2188 | 7/32 | - | - | 5.56 | 0.2188 | 5.56 | ||
| 233-2344 | 15/64 | - | - | 5.95 | 0.2344 | 5.95 | ||
| 233-2362 | - | - | - | 6.00 | 0.2362 | 51 | 83 | 6.00 |
| 233-2500 | 1/4 | - | E | 6.35 | 0.2500 | 6.35 | ||
| 233-2656 | 17/64 | - | - | 6.75 | 0.2656 | 6.75 | ||
| 233-2812 | 9/32 | - | - | 7.14 | 0.2812 | 54 | 89 | 7.14 |
| 233-2969 | 19/64 | - | - | 7.54 | 0.2969 | 7.54 | ||
| 233-3125 | 5/16 | - | - | 7.94 | 0.3125 | 60 | 95 | 7.94 |
| 233-3150 | - | - | - | 8.00 | 0.3150 | 8.00 | ||
| 233-3281 | 21/64 | - | - | 8.33 | 0.3281 | 8.33 | ||
| 233-3438 | 11/32 | - | - | 8.73 | 0.3438 | 64 | 102 | 8.73 |
| 233-3594 | 23/64 | - | - | 9.13 | 0.3594 | 9.13 | ||
| 233-3750 | 3/8 | - | - | 9.53 | 0.3750 | 70 | 108 | 9.53 |
| 233-3906 | 25/64 | - | - | 9.92 | 0.3906 | 9.92 | ||
| 233-3937 | - | - | - | 10.00 | 0.3937 | 10.00 | ||
| 233-4062 | 13/32 | - | - | 10.32 | 0.4062 | 73 | 114 | 10.32 |
| 233-4219 | 27/64 | - | - | 10.72 | 0.4219 | 10.72 | ||
| 233-4375 | 7/16 | - | - | 11.11 | 0.4375 | 11.11 | ||
| 233-4531 | 29/64 | - | - | 11.51 | 0.4531 | 11.51 | ||
| 233-4688 | 15/32 | - | - | 11.91 | 0.4688 | 11.91 | ||
| 233-4724 | - | - | - | 12.00 | 0.4724 | 76 | 121 | 12.00 |
| 233-4844 | 31/64 | - | - | 12.30 | 0.4844 | 12.30 | ||
| 233-5000 | 1/2 | - | - | 12.70 | 0.5000 | 12.70 | ||
| 233-5312 | 17/32 | - | - | 13.49 | 0.5312 | 13.49 | ||
| 233-5512 | - | - | - | 14.00 | 0.5512 | 14.00 | ||
| 233-5625 | 9/16 | - | - | 14.29 | 0.5625 | 89 | 14.29 | |
| 233-6250 | 5/8 | - | - | 15.88 | 0.6250 | 146 | 15.88 | |
| 233-6299 | - | - | - | 16.00 | 0.6299 | 16.00 | ||
| 233-7500 | 3/4 | - | - | 19.05 | 0.7500 | 108 | 19.05 |
Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order: 05 = TiN, 08 = TiCN, 11 = TiAlN.
Work Material
P M K N S H
Carbon Steels Alloy Stainless Steels Aluminum Nickel Hardened Steels
| List No. | Low | Med. | High | Steels | Die | Cast | Alloy Titanium | |||||||||
| 1010 | 1035 | 4140 | Steels | Iron | 6061 | 6Al4V | ~35 | 35-45 | 45-50 | 50-70 | ||||||
| 1018 | 1045 | 1065 | 4340 | 300 | 400 | 17-4 PH | 7075 Casting Inconel | HRC | HRC | HRC | HRC |
(30 HRC)
