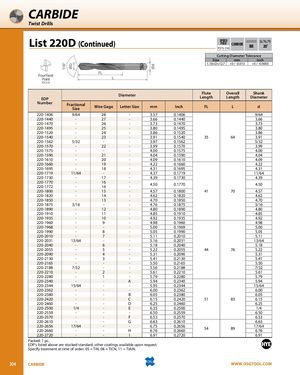

118° ØD Ød CARBIDE Twist Drills List 220D (Continued) SPEEDFEED CARBIDEP315-316BR 20˚ Cutting Diameter Tolerance Size mm inch 1.18≤D≤12.7 +0 / -0.013 +0 / -0.0005 Four FacetPoint FL L (D≤1.5) EDP Diameter Flute Overall ShankLengthLengthDiameter Number FractionalSizeWire Gage Letter Size mm Inch FL L d 220-1406 9/64 28 - 3.57 0.1406 9/64 220-1440 - 27 - 3.66 0.1440 3.66 220-1470 - 26 - 3.73 0.1470 3.73 220-1495 - 25 - 3.80 0.1495 3.80 220-1520 - 24 - 3.86 0.1520 3.86 220-1540 - 23 - 3.91 0.1540 35 64 3.91 220-1562 5/32 - - 3.97 0.1562 5/32 220-1570 - 22 - 3.99 0.1570 3.99 220-1575 - - - 4.00 0.1575 4.00 220-1590 - 21 - 4.04 0.1590 4.04 220-1610 - 20 - 4.09 0.1610 4.09 220-1660 - 19 - 4.22 0.1660 4.22 220-1695 - 18 - 4.31 0.1695 4.31 220-1719 11/64 - - 4.37 0.1719 11/64 220-1730 - 17 - 4.39 0.1730 4.39 220-1770 -220-1772- 1616 -- 4.50 0.1770 4.50 220-1800 - 15 - 4.57 0.1800 41 70 4.57 220-1820 - 14 - 4.62 0.1820 4.62 220-1850 - 13 - 4.70 0.1850 4.70 220-1875 3/16 - - 4.76 0.1875 3/16 220-1890 - 12 - 4.80 0.1890 4.80 220-1910 - 11 - 4.85 0.1910 4.85 220-1935 - 10 - 4.92 0.1935 4.92 220-1960 - 9 - 4.98 0.1960 4.98 220-1968 - - - 5.00 0.1969 5.00 220-1990 - 8 - 5.05 0.1990 5.05 220-2010 - 7 - 5.11 0.2010 5.11 220-2031 13/64 - - 5.16 0.2031 13/64 220-2040 - 6 - 5.18 0.2040 5.18 220-2055 - 5 - 5.22 0.2055 44 76 5.22 220-2090 - 4 - 5.31 0.2090 5.31 220-2130 - 3 - 5.41 0.2130 5.41 220-2165 - - - 5.50 0.2165 5.50 220-2188 7/32 - - 5.56 0.2188 7/32 220-2210 - 2 - 5.61 0.2210 5.61 220-2280 - 1 - 5.79 0.2280 5.79 220-2340 - - A 5.94 0.2340 5.94 220-2344 15/64 - - 5.95 0.2344 15/64 220-2362 - - - 6.00 0.2362 6.00 220-2380 - - B 6.05 0.2380 6.05 220-2420 - - C 6.15 0.2420 51 83 6.15 220-2460 - - D 6.25 0.2460 6.25 220-2500 1/4 - E 6.35 0.2500 1/4 220-2559 - - - 6.50 0.2559 6.50 220-2570 - - F 6.53 0.2570 6.53 220-2610 - - G 6.63 0.2610 6.63 220-2656 17/64 -220-2660-- -H 6.75 0.26566.760.266054 89 17/646.76 220-2720 - - I 6.91 0.2720 6.91 Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order: 05 = TiN, 08 = TiCN, 11 = TiAlN. 204 CARBIDE WWW.OSGTOOL.COM
