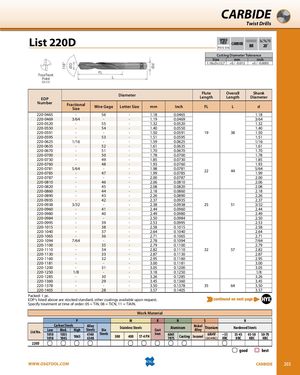

List 220D
SPEED FEED CARBIDE BR 20˚ P315-316 Cutting Diameter Tolerance
Size mm inch
1.18≤D≤12.7 +0 / -0.013 +0 / -0.0005
FL Four Facet Point L (D≤1.5)
| Diameter | Flute | Overall | Shank | |
| EDP | Length | Length | Diameter |
Number Fractional
| Size | Wire Gage | Letter Size | mm | Inch | L FL d | |
| 220-0465 | - | 56 | - | 1.18 | 0.0465 | 1.18 |
| 220-0469 | 3/64 | - | - | 1.19 | 0.0469 | 3/64 |
| 220-0520 | - | 55 | - | 1.32 | 0.0520 | 1.32 |
| 220-0550 | - | 54 | - | 1.40 | 0.0550 | 1.40 |
| 220-0591 | - | - | - | 1.50 | 0.0591 | 38 19 1.50 |
| 220-0595 | - | 53 | - | 1.51 | 0.0595 | 1.51 |
| 220-0625 | 1/16 | - | - | 1.59 | 0.0625 | 1/16 |
| 220-0635 | - | 52 | - | 1.61 | 0.0635 | 1.61 |
| 220-0670 | - | 51 | - | 1.70 | 0.0670 | 1.70 |
| 220-0700 | - | 50 | - | 1.78 | 0.0700 | 1.78 |
| 220-0730 | - | 49 | - | 1.85 | 0.0730 | 1.85 |
| 220-0760 | - | 48 | - | 1.93 | 0.0760 | 1.93 |
| 220-0781 | 5/64 | - | - | 1.98 | 0.0781 | 5/64 |
| 220-0785 | - | 47 | - | 1.99 | 0.0785 | 44 22 1.99 |
| 220-0787 | - | - | - | 2.00 | 0.0787 | 2.00 |
| 220-0810 | - | 46 | - | 2.06 | 0.0810 | 2.06 |
| 220-0820 | - | 45 | - | 2.08 | 0.0820 | 2.08 |
| 220-0860 | - | 44 | - | 2.18 | 0.0860 | 2.18 |
| 220-0890 | - | 43 | - | 2.26 | 0.0890 | 2.26 |
| 220-0935 | - | 42 | - | 2.37 | 0.0935 | 2.37 |
| 220-0938 | 3/32 | - | - | 2.38 | 0.0938 | 51 25 3/32 |
| 220-0960 | - | 41 | - | 2.44 | 0.0960 | 2.44 |
| 220-0980 | - | 40 | - | 2.49 | 0.0980 | 2.49 |
| 220-0984 | - | - | - | 2.50 | 0.0984 | 2.50 |
| 220-0995 | - | 39 | - | 2.53 | 0.0995 | 2.53 |
| 220-1015 | - | 38 | - | 2.58 | 0.1015 | 2.58 |
| 220-1040 | - | 37 | - | 2.64 | 0.1040 | 2.64 |
| 220-1065 | - | 36 | - | 2.71 | 0.1065 | 2.71 |
| 220-1094 | 7/64 | - | - | 2.78 | 0.1094 | 7/64 |
| 220-1100 | - | 35 | - | 2.79 | 0.1100 | 2.79 |
| 220-1110 | - | 34 | - | 2.82 | 0.1110 | 57 32 2.82 |
| 220-1130 | - | 33 | - | 2.87 | 0.1130 | 2.87 |
| 220-1160 | - | 32 | - | 2.95 | 0.1160 | 2.95 |
| 220-1181 | - | - | - | 3.00 | 0.1181 | 3.00 |
| 220-1200 | - | 31 | - | 3.05 | 0.1200 | 3.05 |
| 220-1250 | 1/8 | - | - | 3.18 | 0.1250 | 1/8 |
| 220-1285 | - | 30 | - | 3.26 | 0.1285 | 3.26 |
| 220-1360 | - | 29 | - | 3.45 | 0.1360 | 3.45 |
| 220-1378 | - | - | - | 3.50 | 0.1378 | 64 35 3.50 |
| 220-1405 | - | 28 | - | 3.57 | 0.1405 | 3.57 |
Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order: 05 = TiN, 08 = TiCN, 11 = TiAlN. Work Material
P M K N S H
Carbon Steels Alloy Stainless Steels Aluminum Nickel Hardened Steels
| List No. | Low | Med. | High | Steels | Die | Cast | Alloy Titanium | |||||||||
| 1010 | 1035 | 4140 | Steels | Iron | 6061 | 6Al4V | ~35 | 35-45 | 45-50 | 50-70 | ||||||
| 1018 | 1045 | 1065 | 4340 | 300 | 400 | 17-4 PH | 7075 Casting Inconel | HRC | HRC | HRC | HRC |
(30 HRC)
