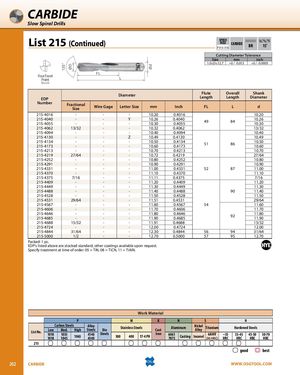

List 215
(Continued) SPEED FEED CARBIDE BR 15˚ P315-316 Cutting Diameter Tolerance
Size mm inch
1.0≤D≤12.7 +0 / -0.013 +0 / -0.0005
FL Four Facet Point L (D≤1.5)
| Diameter | Flute | Overall | Shank | |
| EDP | Length | Length | Diameter |
Number Fractional
| Size | Wire Gage | Letter Size | mm | Inch | FL | L | d | |
| 215-4016 | - | - | - | 10.20 | 0.4016 | 10.20 | ||
| 215-4040 | - | - | Y | 10.26 | 0.4040 | 49 | 84 | 10.26 |
| 215-4055 | - | - | - | 10.30 | 0.4055 | 10.30 | ||
| 215-4062 | 13/32 | - | - | 10.32 | 0.4062 | 13/32 | ||
| 215-4094 | - | - | - | 10.40 | 0.4094 | 10.40 | ||
| 215-4130 | - | - | Z | 10.49 | 0.4130 | 10.49 | ||
| 215-4134 | - | - | - | 10.50 | 0.4134 | 51 | 86 | 10.50 |
| 215-4173 | - | - | - | 10.60 | 0.4173 | 10.60 | ||
| 215-4213 | - | - | - | 10.70 | 0.4213 | 10.70 | ||
| 215-4219 | 27/64 | - | - | 10.72 | 0.4219 | 27/64 | ||
| 215-4252 | - | - | - | 10.80 | 0.4252 | 10.80 | ||
| 215-4291 | - | - | - | 10.90 | 0.4291 | 10.90 | ||
| 215-4331 | - | - | - | 11.00 | 0.4331 | 52 | 87 | 11.00 |
| 215-4370 | - | - | - | 11.10 | 0.4370 | 11.10 | ||
| 215-4375 | 7/16 | - | - | 11.11 | 0.4375 | 7/16 | ||
| 215-4409 | - | - | - | 11.20 | 0.4409 | 11.20 | ||
| 215-4449 | - | - | - | 11.30 | 0.4449 | 11.30 | ||
| 215-4488 | - | - | - | 11.40 | 0.4488 | 90 | 11.40 | |
| 215-4528 | - | - | - | 11.50 | 0.4528 | 11.50 | ||
| 215-4531 | 29/64 | - | - | 11.51 | 0.4531 | 29/64 | ||
| 215-4567 | - | - | - | 11.60 | 0.4567 | 54 | 11.60 | |
| 215-4606 | - | - | - | 11.70 | 0.4606 | 11.70 | ||
| 215-4646 | - | - | - | 11.80 | 0.4646 | 92 | 11.80 | |
| 215-4685 | - | - | - | 11.90 | 0.4685 | 11.90 | ||
| 215-4688 | 15/32 | - | - | 11.91 | 0.4688 | 15/32 | ||
| 215-4724 | - | - | - | 12.00 | 0.4724 | 12.00 | ||
| 215-4844 | 31/64 | - | - | 12.30 | 0.4844 | 56 | 94 | 31/64 |
| 215-5000 | 1/2 | - | - | 12.70 | 0.5000 | 57 | 95 | 12.70 |
Packed: 1 pc. EDP’s listed above are stocked standard, other coatings available upon request. Specify treatment at time of order: 05 = TiN, 08 = TiCN, 11 = TiAlN.
Work Material
P M K N S H
Carbon Steels Alloy Stainless Steels Aluminum Nickel Hardened Steels
| List No. | Low | Med. | High | Steels | Die | Cast | Alloy Titanium | |||||||||
| 1010 | 1035 | 4140 | Steels | Iron | 6061 | 6Al4V | ~35 | 35-45 | 45-50 | 50-70 | ||||||
| 1018 | 1045 | 1065 | 4340 | 300 | 400 | 17-4 PH | 7075 Casting Inconel | HRC | HRC | HRC | HRC |
(30 HRC)
