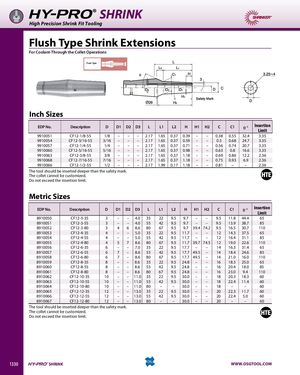

HY-PRO® SHRINK High Precision Shrink Fit Tooling Flush Type Shrink Extensions For Coolant-Through the Collet Operations Inch Sizes EDP No. Description D D1 D2 D3 L L1 L2 H H1 H2 C C1 θ° InsertionLimit 9910051 CF12-1/8-55 1/8 – – – 2.17 1.65 0.37 0.39 – – 0.38 0.55 32.4 3.35 9910054 CF12-3/16-55 3/16 – – – 2.17 1.65 0.37 0.59 – – 0.5 0.68 24.7 3.35 9910057 CF12-1/4-55 1/4 – – – 2.17 1.65 0.37 0.71 – – 0.56 0.74 20.7 3.35 9910060 CF12-5/16-55 5/16 – – – 2.17 1.65 0.37 0.98 – – 0.63 0.8 16.6 3.35 9910063 CF12-3/8-55 3/8 – – – 2.17 1.65 0.37 1.18 – – 0.69 0.86 12.2 2.36 9910068 CF12-7/16-55 7/16 – – – 2.17 1.65 0.37 1.18 – – 0.75 0.93 6.9 2.36 9910066 CF12-1/2-55 1/2 – – – 2.17 1.99 0.17 1.18 – – 0.81 – – 2.36 The tool should be inserted deeper than the safety mark. The collet cannot be customized. Do not exceed the insertion limit. Metric Sizes EDP No. Description D D1 D2 D3 L L1 L2 H H1 H2 C C1 θ° InsertionLimit 8910050 CF12-3-35 3 – – 4.0 35 22 9.5 9.7 – – 9.5 11.8 44.4 65 8910051 CF12-3-55 3 – – 4.0 55 42 9.5 9.7 – – 9.5 13.9 38.7 85 8910052 CF12-3-80 3 4 6 8.6 80 67 9.5 9.7 39.4 74.2 9.5 16.5 30.7 110 8910053 CF12-4-35 4 – – 5.0 35 22 9.5 11.7 – – 12 14.3 37.5 65 8910054 CF12-4-55 4 – – 5.0 55 42 9.5 11.7 – – 12 16.4 31.1 85 8910055 CF12-4-80 4 5 7 8.6 80 67 9.5 11.7 39.7 74.5 12 19.0 22.6 110 8910056 CF12-6-35 6 – – 7.0 35 22 9.5 17.7 – – 14 16.3 31.4 65 8910057 CF12-6-55 6 7 – 8.6 55 42 9.5 17.7 49.5 – 14 18.4 24.6 85 8910058 CF12-6-80 6 7 – 8.6 80 67 9.5 17.7 49.5 – 14 21.0 16.0 110 8910059 CF12-8-35 8 – – 8.6 35 22 9.5 24.8 – – 16 18.3 25.0 65 8910060 CF12-8-55 8 – – 8.6 55 42 9.5 24.8 – – 16 20.4 18.0 85 8910061 CF12-8-80 8 – – 8.6 80 67 9.5 24.8 – – 16 23.0 9.4 110 8910062 CF12-10-35 10 – – 11.0 35 22 9.5 30.0 – – 18 20.3 18.3 60 8910063 CF12-10-55 10 – – 11.0 55 42 9.5 30.0 – – 18 22.4 11.4 60 8910064 CF12-10-80 10 – – 11.0 80 – – 30.0 – – 18 – – 60 8910065 CF12-12-35 12 – – 13.0 35 22 9.5 30.0 – – 20 22.3 11.7 60 8910066 CF12-12-55 12 – – 13.0 55 42 9.5 30.0 – – 20 22.4 5.0 60 8910067 CF12-12-80 12 – – 13.0 80 – – 30.0 – – 20 – – 60 The tool should be inserted deeper than the safety mark. The collet cannot be customized. Do not exceed the insertion limit. 1330 HY-PRO® SHRINK WWW.OSGTOOL.COM
