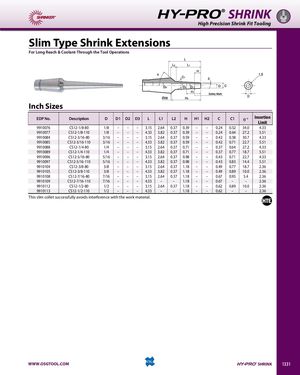

Общий каталог OSG 2018 - 2019 - страница 1331

HY-PRO® SHRINK High Precision Shrink Fit Tooling Slim Type Shrink Extensions For Long Reach & Coolant-Through the Tool Operations Inch Sizes EDP No. Description D D1 D2 D3 L L1 L2 H H1 H2 C C1 θ° InsertionLimit 9910076 CS12-1/8-80 1/8 – – – 3.15 2.64 0.37 0.39 – – 0.24 0.52 34.0 4.33 9910077 CS12-1/8-110 1/8 – – – 4.33 3.82 0.37 0.39 – – 0.24 0.64 27.2 5.51 9910084 CS12-3/16-80 3/16 – – – 3.15 2.64 0.37 0.59 – – 0.42 0.58 30.7 4.33 9910085 CS12-3/16-110 3/16 – – – 4.33 3.82 0.37 0.59 – – 0.42 0.71 22.7 5.51 9910088 CS12-1/4-80 1/4 – – – 3.15 2.64 0.37 0.71 – – 0.37 0.64 27.2 4.33 9910089 CS12-1/4-110 1/4 – – – 4.33 3.82 0.37 0.71 – – 0.37 0.77 18.7 5.51 9910096 CS12-5/16-80 5/16 – – – 3.15 2.64 0.37 0.98 – – 0.43 0.71 22.7 4.33 9910097 CS12-5/16-110 5/16 – – – 4.33 3.82 0.37 0.98 – – 0.43 0.83 14.4 5.51 9910104 CS12-3/8-80 3/8 – – – 3.15 2.64 0.37 1.18 – – 0.49 0.77 18.7 2.36 9910105 CS12-3/8-110 3/8 – – – 4.33 3.82 0.37 1.18 – – 0.49 0.89 10.0 2.36 9910108 CS12-7/16-80 7/16 – – – 3.15 2.64 0.37 1.18 – – 0.67 0.95 5.4 2.36 9910109 CS12-7/16-110 7/16 – – – 4.33 – – 1.18 – – 0.67 – – 2.36 9910112 CS12-1/2-80 1/2 – – – 3.15 2.64 0.37 1.18 – – 0.62 0.89 10.0 2.36 9910113 CS12-1/2-110 1/2 – – – 4.33 – – 1.18 – – 0.62 – – 2.36 This slim collet successfully avoids interference with the work material. WWW.OSGTOOL.COM HY-PRO® SHRINK 1331
