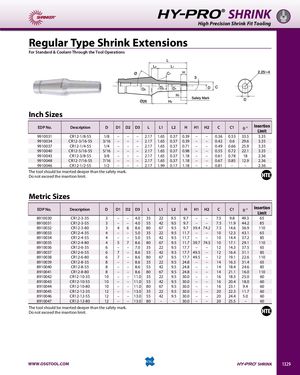

HY-PRO® SHRINK High Precision Shrink Fit Tooling Regular Type Shrink Extensions For Standard & Coolant-Through the Tool Operations Inch Sizes EDP No. Description D D1 D2 D3 L L1 L2 H H1 H2 C C1 θ° InsertionLimit 9910031 CR12-1/8-55 1/8 – – – 2.17 1.65 0.37 0.39 – – 0.36 0.53 33.5 3.35 9910034 CR12-3/16-55 3/16 – – – 2.17 1.65 0.37 0.39 – – 0.42 0.6 29.6 3.35 9910037 CR12-1/4-55 1/4 – – – 2.17 1.65 0.37 0.71 – – 0.49 0.66 25.9 3.35 9910040 CR12-5/16-55 5/16 – – – 2.17 1.65 0.37 0.98 – – 0.55 0.72 22.1 3.35 9910043 CR12-3/8-55 3/8 – – – 2.17 1.65 0.37 1.18 – – 0.61 0.78 18 2.36 9910048 CR12-7/16-55 7/16 – – – 2.17 1.65 0.37 1.18 – – 0.67 0.85 12.9 2.36 9910046 CR12-1/2-55 1/2 – – – 2.17 1.99 0.17 1.18 – – 0.81 – – 2.36 The tool should be inserted deeper than the safety mark. Do not exceed the insertion limit. Metric Sizes EDP No. Description D D1 D2 D3 L L1 L2 H H1 H2 C C1 θ° InsertionLimit 8910030 CR12-3-35 3 – – 4.0 35 22 9.5 9.7 – – 7.5 9.8 49.3 65 8910031 CR12-3-55 3 – – 4.0 55 42 9.5 9.7 – – 7.5 11.9 44.2 85 8910032 CR12-3-80 3 4 6 8.6 80 67 9.5 9.7 39.4 74.2 7.5 14.6 36.9 110 8910033 CR12-4-35 4 – – 5.0 35 22 9.5 11.7 – – 10 12.3 43.1 65 8910034 CR12-4-55 4 – – 5.0 55 42 9.5 11.7 – – 10 14.4 37.2 85 8910035 CR12-4-80 4 5 7 8.6 80 67 9.5 11.7 39.7 74.5 10 17.1 29.1 110 8910036 CR12-6-35 6 – – 7.0 35 22 9.5 17.7 – – 12 14.3 37.5 65 8910037 CR12-6-55 6 7 – 8.6 55 42 9.5 17.7 49.5 – 12 16.4 31.1 85 8910038 CR12-6-80 6 7 – 8.6 80 67 9.5 17.7 49.5 – 12 19.1 22.6 110 8910039 CR12-8-35 8 – – 8.6 35 22 9.5 24.8 – – 14 16.3 31.4 65 8910040 CR12-8-55 8 – – 8.6 55 42 9.5 24.8 – – 14 18.4 24.6 85 8910041 CR12-8-80 8 – – 8.6 80 67 9.5 24.8 – – 14 21.1 16.0 110 8910042 CR12-10-35 10 – – 11.0 35 22 9.5 30.0 – – 16 18.3 25.0 60 8910043 CR12-10-55 10 – – 11.0 55 42 9.5 30.0 – – 16 20.4 18.0 60 8910044 CR12-10-80 10 – – 11.0 80 67 9.5 30.0 – – 16 23.1 9.4 60 8910045 CR12-12-35 12 – – 13.0 35 22 9.5 30.0 – – 20 22.3 11.7 60 8910046 CR12-12-55 12 – – 13.0 55 42 9.5 30.0 – – 20 24.4 5.0 60 8910047 CR12-12-80 12 – – 13.0 80 – – 30.0 – – 20 25.5 – 60 The tool should be inserted deeper than the safety mark. Do not exceed the insertion limit. WWW.OSGTOOL.COM HY-PRO® SHRINK 1329
