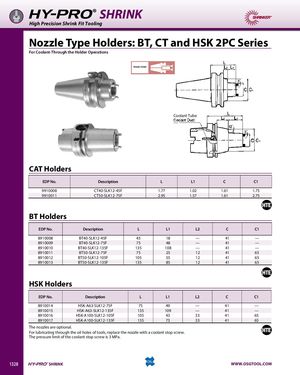

HY-PRO® SHRINK High Precision Shrink Fit Tooling Nozzle Type Holders: BT, CT and HSK 2PC Series For Coolant-Through the Holder Operations Coolant Tube CAT Holders EDP No. Description L L1 C C1 9910008 CT40-SLK12-45F 1.77 1.02 1.61 1.75 9910011 CT50-SLK12-75F 2.95 1.57 1.61 2.75 BT Holders EDP No. Description L L1 L2 C C1 8910008 BT40-SLK12-45F 45 18 — 41 — 8910009 BT40-SLK12-75F 75 48 — 41 — 8910010 BT40-SLK12-135F 135 108 — 41 — 8910011 BT50-SLK12-75F 75 25 12 41 65 8910012 BT50-SLK12-105F 105 55 12 41 65 8910013 BT50-SLK12-135F 135 85 12 41 65 HSK Holders EDP No. Description L L1 L2 C C1 8910014 HSK-A63-SLK12-75F 75 49 — 41 — 8910015 HSK-A63-SLK12-135F 135 109 — 41 — 8910016 HSK-A100-SLK12-105F 105 43 33 41 65 8910017 HSK-A100-SLK12-135F 135 73 33 41 65 The nozzles are optional. For lubricating through the oil holes of tools, replace the nozzle with a coolant stop screw. The pressure limit of the coolant stop screw is 3 MPa. 1328 HY-PRO® SHRINK WWW.OSGTOOL.COM
