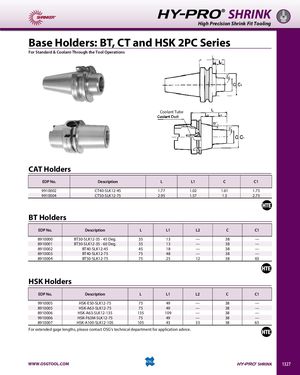

HY-PRO® SHRINK High Precision Shrink Fit Tooling Base Holders: BT, CT and HSK 2PC Series For Standard & Coolant-Through the Tool Operations Coolant Tube CAT Holders EDP No. Description L L1 C C1 9910002 CT40-SLK12-45 1.77 1.02 1.61 1.75 9910004 CT50-SLK12-75 2.95 1.57 1.5 2.75 BT Holders EDP No. Description L L1 L2 C C1 8910000 BT30-SLK12-35 - 45 Deg. 35 13 — 38 — 8910001 BT30-SLK12-35 - 60 Deg. 35 13 — 38 — 8910002 BT40-SLK12-45 45 18 — 38 — 8910003 BT40-SLK12-75 75 48 — 38 — 8910004 BT50-SLK12-75 75 25 12 38 65 HSK Holders EDP No. Description L L1 L2 C C1 9910005 HSK-E50-SLK12-75 75 49 — 38 — 8910005 HSK-A63-SLK12-75 75 49 — 38 — 8910006 HSK-A63-SLK12-135 135 109 — 38 — 9910006 HSK-F63M-SLK12-75 75 49 — 38 — 8910007 HSK-A100-SLK12-105 105 43 33 38 65 For extended gage lengths, please contact OSG’s technical department for application advice. WWW.OSGTOOL.COM HY-PRO® SHRINK 1327
