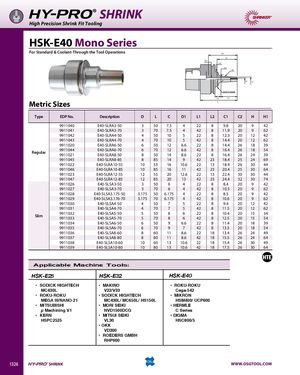

HY-PRO® SHRINK High Precision Shrink Fit Tooling HSK-E40 Mono Series For Standard & Coolant-Through the Tool Operations H1 H D1 C2 C1 3˚ D C SAFETY MARK L2 L1 Metric Sizes L Type EDP No. Description D L C D1 L1 L2 C1 C2 H H1 9911040 E40-SLRA3-50 3 50 7.5 4 22 8 9.8 20 9 42 9911041 E40-SLRA3-70 3 70 7.5 4 42 8 11.9 20 9 62 9911042 E40-SLRA4-50 4 50 10 5 22 8 12.3 20 12 42 9911043 E40-SLRA4-70 4 70 10 5 42 8 14.4 20 12 62 9911020 E40-SLRA6-50 6 50 12 6.6 22 8 14.4 26 18 39 Regular 99110449911021 E40-SLRA6-70 6 70 12 6.6 42 8 16.4 26 18 54E40-SLRA8-50850148.622816.4262439 9911045 E40-SLRA8-85 8 85 14 9 42 23 18.4 25 24 69 9911022 E40-SLRA10-55 10 55 16 10.6 22 13 18.4 26 30 44 9911046 E40-SLRA10-85 10 85 16 11 42 23 20.4 25 30 64 9911023 E40-SLRA12-55 12 55 20 12.6 22 13 22.4 30 30 44 9911047 E40-SLRA12-85 12 85 20 13 42 23 24.4 32 30 74 9911026 E40-SLSA3-50 3 50 6 4 22 8 8.4 20 9 42 9911027 E40-SLSA3-70 3 70 6 4 42 8 10.5 20 9 62 9911028 E40-SLSA3.175-50 3.175 50 6.175 4 22 8 8.5 20 9 42 9911029 E40-SLSA3.176-70 3.175 70 6.175 4 42 8 10.6 20 9 62 9911030 E40-SLSA4-50 4 50 7 5 22 8 9.4 20 12 42 9911031 E40-SLSA4-70 4 70 7 5 42 8 11.5 20 12 62 Slim 99110329911033 E40-SLSA5-50 5 50 8 6 22 8 10.4 20 15 34E40-SLSA5-705708642812.5201554 9911034 E40-SLSA6-50 6 50 9 6.6 22 8 11.4 20 18 39 9911035 E40-SLSA6-70 6 70 9 7 42 8 13.5 20 18 54 9911036 E40-SLSA8-60 8 60 11 8.6 22 18 13.4 26 24 49 9911037 E40-SLSA8-80 8 80 11 8.6 42 18 15.5 26 24 64 9911038 E40-SLSA10-60 10 60 13 10.6 22 18 15.4 26 30 49 9911039 E40-SLSA10-80 10 80 13 10.6 42 18 17.5 26 30 64 Applicable Machine Tools: HSK-E25 HSK-E32 HSK-E40 • SODICK HIGHTECH • MAKINO • ROKU-ROKU MC430L V22/V33 Cega-542 • ROKU-ROKU • SODICK HIGHTECH • MIKRON MEGA III/NANO-21 MC430L/ MC650L/ HS150L HSM400/ UCP600 • MITSUBISHI • MORI SEIKI • HERMLE µ Machining V1 NVD1500DCG C Series • KERN • MITSUI SEIKI • DIGMA HSPC2525 VL30 HSC800/5 • OKK VD300 • ROEDERS GMBH RHP600 1326 HY-PRO® SHRINK WWW.OSGTOOL.COM
