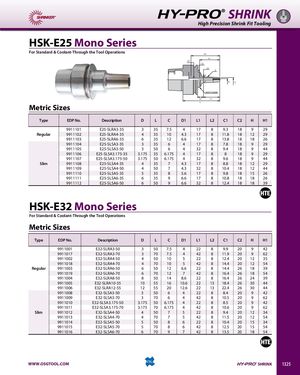

HY-PRO® SHRINK High Precision Shrink Fit Tooling HSK-E25 Mono Series For Standard & Coolant-Through the Tool Operations H1 H D1 C2 C1 3˚ D C SAFETY MARK L2 L1 L Metric Sizes Type EDP No. Description D L C D1 L1 L2 C1 C2 H H1 9911101 E25-SLRA3-35 3 35 7.5 4 17 8 9.3 18 9 29 Regular 9911102 E25-SLRA4-35 4 35 10 4.3 17 8 11.8 18 12 29 9911103 E25-SLRA6-35 6 35 12 6.6 17 8 13.8 18 18 26 9911104 E25-SLSA3-35 3 35 6 4 17 8 7.8 18 9 29 9911105 E25-SLSA3-50 3 50 6 4 32 8 9.4 18 9 44 9911106 E25-SLSA3.175-35 3.175 35 6.175 4 17 8 8 18 9 29 9911107 E25-SLSA3.175-50 3.175 50 6.175 4 32 8 9.6 18 9 44 Slim 9911108 E25-SLSA4-35 4 35 7 4.3 17 8 8.8 18 12 29 9911109 E25-SLSA4-50 4 50 7 4.3 32 8 10.4 18 12 44 9911110 E25-SLSA5-35 5 35 8 5.6 17 8 9.8 18 15 26 9911111 E25-SLSA6-35 6 35 9 6.6 17 8 10.8 18 18 26 9911112 E25-SLSA6-50 6 50 9 6.6 32 8 12.4 18 18 39 HSK-E32 Mono Series For Standard & Coolant-Through the Tool Operations Metric Sizes Type EDP No. Description D L C D1 L1 L2 C1 C2 H H1 9911001 E32-SLRA3-50 3 50 7.5 4 22 8 9.9 20 9 42 9911017 E32-SLRA3-70 3 70 7.5 4 42 8 11.9 20 9 62 9911002 E32-SLRA4-50 4 50 10 5 22 8 12.4 20 12 35 9911018 E32-SLRA4-70 4 70 10 5 42 8 14.4 20 12 54 Regular 9911003 E32-SLRA6-50 6 50 12 6.6 22 8 14.4 26 18 39 9911019 E32-SLRA6-70 6 70 12 7 42 8 16.4 26 18 54 9911004 E32-SLRA8-50 8 50 14 8.6 22 8 16.4 26 24 39 9911005 E32-SLRA10-55 10 55 16 10.6 22 13 18.4 26 30 44 9911006 E32-SLRA12-55 12 55 20 12.6 22 13 22.4 26 30 44 9911008 E32-SLSA3-50 3 50 6 4 22 8 8.4 20 9 42 9911009 E32-SLSA3-70 3 70 6 4 42 8 10.5 20 9 62 9911010 E32-SLSA3.175-50 3.175 50 6.175 4 22 8 8.5 20 9 42 9911011 E32-SLSA3.175-70 3.175 70 6.175 4 42 8 10.6 20 9 62 Slim 9911012 E32-SLSA4-50 4 50 7 5 22 8 9.4 20 12 34 9911013 E32-SLSA4-70 4 70 7 5 42 8 11.5 20 12 54 9911014 E32-SLSA5-50 5 50 8 6 22 8 10.4 20 15 34 9911015 E32-SLSA5-70 5 70 8 6 42 8 12.5 20 15 54 9911016 E32-SLSA6-70 6 70 9 7 42 8 13.5 20 18 54 WWW.OSGTOOL.COM HY-PRO® SHRINK 1325
