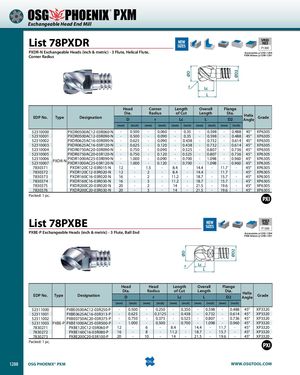

Общий каталог OSG 2018 - 2019 - страница 1288

ØD ØD ØD2 ØD2 ® PXM Exchangeable Head End Mill List 78PXDR NEW SPEEDFEEDSIZESP1300 PXDR-N Exchangeable Heads (inch & metric) - 3 Flute, Helical Flute, Accessories: p1292-1294 Corner Radius PXM Arbors: p1290-1291 r Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia.D Radiusr of Cut LengthLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52310000 PXDR0500AC12-03R060-N - 0.500 - 0.060 - 0.35 - 0.598 - 0.488 45° XP6305 52310001 PXDR0500AC12-03R090-N - 0.500 - 0.090 - 0.35 - 0.598 - 0.488 45° XP6305 52310002 PXDR0625AC16-03R090-N - 0.625 - 0.090 - 0.438 - 0.732 - 0.614 45° XP6305 52310003 PXDR0625AC16-03R120-N - 0.625 - 0.120 - 0.438 - 0.732 - 0.614 45° XP6305 52310004 PXDR0750AC20-03R090-N - 0.750 - 0.090 - 0.525 - 0.807 - 0.736 45° XP6305 52310005 PXDR0750AC20-03R120-N - 0.750 - 0.120 - 0.525 - 0.807 - 0.736 45° XP6305 5231000652310007PXDR-N PXDR1000AC25-03R090-N PXDR1000AC25-03R120-N-- 1.0001.000 -- 0.0900.120 - 0.700 - 1.098 - 0.960 45° XP6305-0.700-1.098-0.96045°XP6305 7830371 PXDR120C12-03R015-N 12 - 1.5 - 8.4 - 14.4 - 11.7 - 45° XP6305 7830372 PXDR120C12-03R020-N 12 - 2 - 8.4 - 14.4 - 11.7 - 45° XP6305 7830373 PXDR160C16-03R020-N 16 - 2 - 11.2 - 18.7 - 15.7 - 45° XP6305 7830374 PXDR160C16-03R030-N 16 - 3 - 11.2 - 18.7 - 15.7 - 45° XP6305 7830375 PXDR200C20-03R020-N 20 - 2 - 14 - 21.5 - 19.6 - 45° XP6305 7830376 PXDR200C20-03R030-N 20 - 3 - 14 - 21.5 - 19.6 - 45° XP6305 Packed: 1 pc. List 78PXBE NEWSIZES SPEEDFEEDP1300 PXBE-P Exchangeable Heads (inch & metric) - 3 Flute, Ball End Accessories: p1292-1294 PXM Arbors: p1290-1291 r Lc L Head Head Length Overall Flange EDP No. Type Designation Dia.D Radiusr of Cut LengthLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52311000 PXBE0500AC12-03R250-P - 0.500 - 0.250 - 0.350 - 0.598 - 0.488 45° XP3320 52311001 PXBE0625AC16-03R313-P - 0.625 - 0.3125 - 0.438 - 0.732 - 0.614 45° XP3320 52311002 PXBE0750AC20-03R375-P - 0.750 - 0.375 - 0.525 - 0.807 - 0.736 45° XP3320 52311003 PXBE-P PXBE1000AC25-03R500-P - 1.000 - 0.500 - 0.700 - 1.098 - 0.960 45° XP3320 7830271 PXBE120C12-03R060-P 12 - 6 - 8.4 - 14.4 - 11.7 - 45° XP3320 7830272 PXBE160C16-03R080-P 16 - 8 - 11.2 - 18.7 - 15.7 - 45° XP3320 7830273 PXBE200C20-03R100-P 20 - 10 - 14 - 21.5 - 19.6 - 45° XP3320 Packed: 1 pc. 1288 OSG PHOENIX® PXM WWW.OSGTOOL.COM
