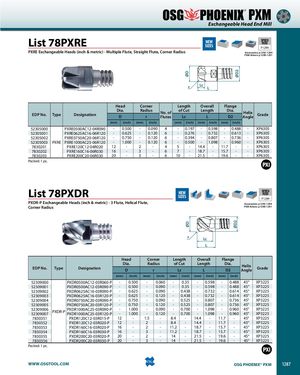

ØDØD ØD2ØD2 ® PXM Exchangeable Head End Mill List 78PXRE NEWSIZES SPEEDFEEDP1299 PXRE Exchangeable Heads (inch & metric) - Multiple Flute, Straight Flute, Corner Radius Accessories: p1292-1294 PXM Arbors: p1290-1291 r Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia.D Radius No. of of Cut LengthrFlutesLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52305000 PXRE0500AC12-04R090 - 0.500 - 0.090 4 - 0.197 - 0.598 - 0.488 - XP6305 52305001 PXRE0625AC16-06R120 - 0.625 - 0.120 6 - 0.276 - 0.732 - 0.613 - XP6305 52305002 PXRE0750AC20-06R120 - 0.750 - 0.120 6 - 0.394 - 0.807 - 0.736 - XP6305 52305003 PXRE PXRE1000AC25-06R120 - 1.000 - 0.120 6 - 0.500 - 1.098 - 0.960 - XP6305 7830201 PXRE120C12-04R020 12 - 2 - 4 5 - 14.4 - 11.7 - - XP6305 7830202 PXRE160C16-06R030 16 - 3 - 6 7 - 18.7 - 15.7 - - XP6305 7830203 PXRE200C20-06R030 20 - 3 - 6 10 - 21.5 - 19.6 - - XP6305 Packed: 1 pc. List 78PXDR NEWSIZES SPEEDFEEDP1299 PXDR-P Exchangeable Heads (inch & metric) - 3 Flute, Helical Flute, Accessories: p1292-1294 Corner Radius PXM Arbors: p1290-1291 r Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia.D Radiusr of Cut LengthLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52309000 PXDR0500AC12-03R060-P - 0.500 - 0.060 - 0.35 - 0.598 - 0.488 45° XP3225 52309001 PXDR0500AC12-03R090-P - 0.500 - 0.090 - 0.35 - 0.598 - 0.488 45° XP3225 52309002 PXDR0625AC16-03R090-P - 0.625 - 0.090 - 0.438 - 0.732 - 0.614 45° XP3225 52309003 PXDR0625AC16-03R120-P - 0.625 - 0.120 - 0.438 - 0.732 - 0.614 45° XP3225 52309004 PXDR0750AC20-03R090-P - 0.750 - 0.090 - 0.525 - 0.807 - 0.736 45° XP3225 52309005 PXDR0750AC20-03R120-P - 0.750 - 0.120 - 0.525 - 0.807 - 0.736 45° XP3225 5230900652309007PXDR-P PXDR1000AC25-03R090-P PXDR1000AC25-03R120-P -- 1.0001.000 -- 0.090 - 0.700 - 1.098 - 0.960 45° XP32250.120-0.700-1.098-0.96045°XP3225 7830351 PXDR120C12-03R015-P 12 - 1.5 - 8.4 - 14.4 - 11.7 - 45° XP3225 7830352 PXDR120C12-03R020-P 12 - 2 - 8.4 - 14.4 - 11.7 - 45° XP3225 7830353 PXDR160C16-03R020-P 16 - 2 - 11.2 - 18.7 - 15.7 - 45° XP3225 7830354 PXDR160C16-03R030-P 16 - 3 - 11.2 - 18.7 - 15.7 - 45° XP3225 7830355 PXDR200C20-03R020-P 20 - 2 - 14 - 21.5 - 19.6 - 45° XP3225 7830356 PXDR200C20-03R030-P 20 - 3 - 14 - 21.5 - 19.6 - 45° XP3225 Packed: 1 pc. WWW.OSGTOOL.COM OSG PHOENIX® PXM 1287
