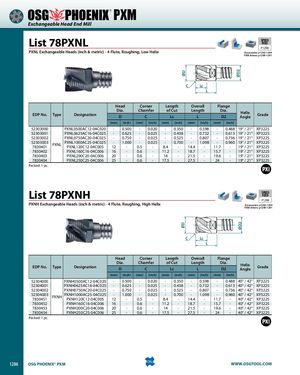

ØDØD ØD2ØD2 ® PXM Exchangeable Head End Mill List 78PXNL SPEEDFEED P1298 PXNL Exchangeable Heads (inch & metric) - 4 Flute, Roughing, Low Helix Accessories: p1292-1294 PXM Arbors: p1290-1291 C Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia. Chamfer of Cut LengthDCLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52303000 PXNL0500AC12-04C020 - 0.500 - 0.020 - 0.350 - 0.598 - 0.488 19° / 21° XP3225 52303001 PXNL0625AC16-04C025 - 0.625 - 0.025 - 0.438 - 0.732 - 0.613 19° / 21° XP3225 52303002 PXNL0750AC20-04C025 - 0.750 - 0.025 - 0.525 - 0.807 - 0.736 19° / 21° XP3225 523030037830401PXNL PXNL1000AC25-04C025PXNL120C12-04C005-12 1.000- -0.5 0.025- -8.4 0.700 - 1.098 - 0.960 19° / 21° XP3225-14.4-11.7-19° / 21°XP3225 7830402 PXNL160C16-04C006 16 - 0.6 - 11.2 - 18.7 - 15.7 - 19° / 21° XP3225 7830403 PXNL200C20-04C006 20 - 0.6 - 14 - 21.5 - 19.6 - 19° / 21° XP3225 7830404 PXNL250C25-04C006 25 - 0.6 - 17.5 - 27.5 - 24 - 19° / 21° XP3225 Packed: 1 pc. List 78PXNH SPEEDFEED P1298 PXNH Exchangeable Heads (inch & metric) - 4 Flute, Roughing, High Helix Accessories: p1292-1294 PXM Arbors: p1290-1291 C Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia. Chamfer of Cut LengthDCLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52304000 PXNH0500AC12-04C020 - 0.500 - 0.020 - 0.350 - 0.598 - 0.488 40° / 42° XP3225 52304001 PXNH0625AC16-04C025 - 0.625 - 0.025 - 0.438 - 0.732 - 0.613 40° / 42° XP3225 52304002 PXNH0750AC20-04C025 - 0.750 - 0.025 - 0.525 - 0.807 - 0.736 40° / 42° XP3225 523040037830451PXNH PXNH1000AC25-04C025PXNH120C12-04C005-12 1.000- -0.5 0.025- -8.4 0.700 - 1.098 - 0.960 40° / 42° XP3225-14.4-11.7-40° / 42°XP3225 7830452 PXNH160C16-04C006 16 - 0.6 - 11.2 - 18.7 - 15.7 - 40° / 42° XP3225 7830453 PXNH200C20-04C006 20 - 0.6 - 14 - 21.5 - 19.6 - 40° / 42° XP3225 7830454 PXNH250C25-04C006 25 - 0.6 - 17.5 - 27.5 - 24 - 40° / 42° XP3225 Packed: 1 pc. 1286 OSG PHOENIX® PXM WWW.OSGTOOL.COM
