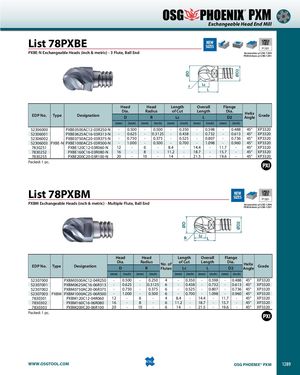

ØD ØD ØD2ØD2 ® PXM Exchangeable Head End Mill List 78PXBE NEWSIZES SPEEDFEEDP1301 PXBE-N Exchangeable Heads (inch & metric) - 3 Flute, Ball End Accessories: p1292-1294 PXM Arbors: p1290-1291 r Lc L Head Head Length Overall Flange EDP No. Type Designation Dia.D Radius of Cut LengthRLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52306000 PXBE0500AC12-03R250-N - 0.500 - 0.500 - 0.350 - 0.598 - 0.488 45° XP3320 52306001 PXBE0625AC16-03R313-N - 0.625 - 0.3125 - 0.438 - 0.732 - 0.613 45° XP3320 52306002 PXBE0750AC20-03R375-N - 0.750 - 0.375 - 0.525 - 0.807 - 0.736 45° XP3320 52306003 PXBE-N PXBE1000AC25-03R500-N - 1.000 - 0.500 - 0.700 - 1.098 - 0.960 45° XP3320 7830251 PXBE120C12-03R060-N 12 - 6 - 8.4 - 14.4 - 11.7 - 45° XP3320 7830252 PXBE160C16-03R080-N 16 - 8 - 11.2 - 18.7 - 15.7 - 45° XP3320 7830253 PXBE200C20-03R100-N 20 - 10 - 14 - 21.5 - 19.6 - 45° XP3320 Packed: 1 pc. List 78PXBM NEWSIZES SPEEDFEEDP1301 PXBM Exchangeable Heads (inch & metric) - Multiple Flute, Ball End Accessories: p1292-1294 PXM Arbors: p1290-1291 R Lc L Head Head Length Overall Flange EDP No. Type Designation Dia. D Radius No. of of Cut LengthRFlutesLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52307000 PXBM0500AC12-04R250 - 0.500 - 0.250 4 - 0.350 - 0.598 - 0.488 45° XP3320 52307001 PXBM0625AC16-06R313 - 0.625 - 0.3125 6 - 0.438 - 0.732 - 0.613 45° XP3320 52307002 PXBM0750AC20-06R375 - 0.750 - 0.375 6 - 0.525 - 0.807 - 0.736 45° XP3320 52307003 PXBM PXBM1000AC25-06R500 - 1.000 - 0.500 6 - 0.700 - 1.098 - 0.960 45° XP3320 7830301 PXBM120C12-04R060 12 - 6 - 4 8.4 - 14.4 - 11.7 - 45° XP3320 7830302 PXBM160C16-06R080 16 - 8 - 6 11.2 - 18.7 - 15.7 - 45° XP3320 7830303 PXBM200C20-06R100 20 - 10 - 6 14 - 21.5 - 19.6 - 45° XP3320 Packed: 1 pc. WWW.OSGTOOL.COM OSG PHOENIX® PXM 1289
