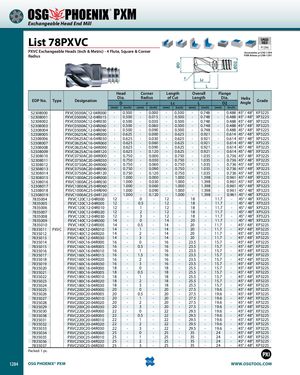

Общий каталог OSG 2018 - 2019 - страница 1284

ØD ØD2 ® PXM Exchangeable Head End Mill List 78PXVC SPEEDFEED P1296 PXVC Exchangeable Heads (Inch & Metric) - 4 Flute, Square & Corner Accessories: p1292-1294 Radius PXM Arbors: p1290-1291 r Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia. D Radius of Cut LengthrLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52308000 PXVC0500AC12-04R000 - 0.500 - 0.000 - 0.500 - 0.748 - 0.488 45° / 48° XP3225 52308001 PXVC0500AC12-04R015 - 0.500 - 0.015 - 0.500 - 0.748 - 0.488 45° / 48° XP3225 52308002 PXVC0500AC12-04R030 - 0.500 - 0.030 - 0.500 - 0.748 - 0.488 45° / 48° XP3225 52308003 PXVC0500AC12-04R060 - 0.500 - 0.060 - 0.500 - 0.748 - 0.488 45° / 48° XP3225 52308004 PXVC0500AC12-04R090 - 0.500 - 0.090 - 0.500 - 0.748 - 0.488 45° / 48° XP3225 52308005 PXVC0625AC16-04R000 - 0.625 - 0.000 - 0.625 - 0.921 - 0.614 45° / 48° XP3225 52308006 PXVC0625AC16-04R030 - 0.625 - 0.030 - 0.625 - 0.921 - 0.614 45° / 48° XP3225 52308007 PXVC0625AC16-04R060 - 0.625 - 0.060 - 0.625 - 0.921 - 0.614 45° / 48° XP3225 52308008 PXVC0625AC16-04R090 - 0.625 - 0.090 - 0.625 - 0.921 - 0.614 45° / 48° XP3225 52308009 PXVC0625AC16-04R120 - 0.625 - 0.120 - 0.625 - 0.921 - 0.614 45° / 48° XP3225 52308010 PXVC0750AC20-04R000 - 0.750 - 0.000 - 0.750 - 1.035 - 0.736 45° / 48° XP3225 52308011 PXVC0750AC20-04R030 - 0.750 - 0.030 - 0.750 - 1.035 - 0.736 45° / 48° XP3225 52308012 PXVC0750AC20-04R060 - 0.750 - 0.060 - 0.750 - 1.035 - 0.736 45° / 48° XP3225 52308013 PXVC0750AC20-04R090 - 0.750 - 0.090 - 0.750 - 1.035 - 0.736 45° / 48° XP3225 52308014 PXVC0750AC20-04R120 - 0.750 - 0.120 - 0.750 - 1.035 - 0.736 45° / 48° XP3225 52308015 PXVC1000AC25-04R000 - 1.000 - 0.000 - 1.000 - 1.398 - 0.961 45° / 48° XP3225 52308016 PXVC1000AC25-04R030 - 1.000 - 0.030 - 1.000 - 1.398 - 0.961 45° / 48° XP3225 52308017 PXVC1000AC25-04R060 - 1.000 - 0.060 - 1.000 - 1.398 - 0.961 45° / 48° XP3225 52308018 PXVC1000AC25-04R090 - 1.000 - 0.090 - 1.000 - 1.398 - 0.961 45° / 48° XP3225 52308019 PXVC1000AC25-04R120 - 1.000 - 0.120 - 1.000 - 1.398 - 0.961 45° / 48° XP3225 7835004 PXVC120C12-04R000 12 - 0 - 12 - 18 - 11.7 - 45° / 48° XP3225 7835005 PXVC120C12-04R005 12 - 0.5 - 12 - 18 - 11.7 - 45° / 48° XP3225 7835006 PXVC120C12-04R010 12 - 1 - 12 - 18 - 11.7 - 45° / 48° XP3225 7835007 PXVC120C12-04R020 12 - 2 - 12 - 18 - 11.7 - 45° / 48° XP3225 7835008 PXVC120C12-04R030 12 - 3 - 12 - 18 - 11.7 - 45° / 48° XP3225 7835009 PXVC140C12-04R000 14 - 0 - 14 - 20 - 11.7 - 45° / 48° XP3225 7835010 PXVC140C12-04R005 14 - 0.5 - 14 - 20 - 11.7 - 45° / 48° XP3225 7835011 PXVC PXVC140C12-04R010 14 - 1 - 14 - 20 - 11.7 - 45° / 48° XP3225 7835012 PXVC140C12-04R020 14 - 2 - 14 - 20 - 11.7 - 45° / 48° XP3225 7835013 PXVC140C12-04R030 14 - 3 - 14 - 20 - 11.7 - 45° / 48° XP3225 7835014 PXVC160C16-04R000 16 - 0 - 16 - 23.5 - 15.7 - 45° / 48° XP3225 7835015 PXVC160C16-04R005 16 - 0.5 - 16 - 23.5 - 15.7 - 45° / 48° XP3225 7835016 PXVC160C16-04R010 16 - 1 - 16 - 23.5 - 15.7 - 45° / 48° XP3225 7835017 PXVC160C16-04R015 16 - 1.5 - 16 - 23.5 - 15.7 - 45° / 48° XP3225 7835018 PXVC160C16-04R020 16 - 2 - 16 - 23.5 - 15.7 - 45° / 48° XP3225 7835019 PXVC160C16-04R030 16 - 3 - 16 - 23.5 - 15.7 - 45° / 48° XP3225 7835020 PXVC180C16-04R000 18 - 0 - 18 - 25.5 - 15.7 - 45° / 48° XP3225 7835021 PXVC180C16-04R005 18 - 0.5 - 18 - 25.5 - 15.7 - 45° / 48° XP3225 7835022 PXVC180C16-04R010 18 - 1 - 18 - 25.5 - 15.7 - 45° / 48° XP3225 7835023 PXVC180C16-04R020 18 - 2 - 18 - 25.5 - 15.7 - 45° / 48° XP3225 7835024 PXVC180C16-04R030 18 - 3 - 18 - 25.5 - 15.7 - 45° / 48° XP3225 7835025 PXVC200C20-04R000 20 - 0 - 20 - 27.5 - 19.6 - 45° / 48° XP3225 7835026 PXVC200C20-04R005 20 - 0.5 - 20 - 27.5 - 19.6 - 45° / 48° XP3225 7835027 PXVC200C20-04R010 20 - 1 - 20 - 27.5 - 19.6 - 45° / 48° XP3225 7835028 PXVC200C20-04R020 20 - 2 - 20 - 27.5 - 19.6 - 45° / 48° XP3225 7835029 PXVC200C20-04R030 20 - 3 - 20 - 27.5 - 19.6 - 45° / 48° XP3225 7835030 PXVC220C20-04R000 22 - 0 - 22 - 29.5 - 19.6 - 45° / 48° XP3225 7835038 PXVC220C20-04R005 22 - 0.5 - 22 - 29.5 - 19.6 - 45° / 48° XP3225 7835031 PXVC220C20-04R010 22 - 1 - 22 - 29.5 - 19.6 - 45° / 48° XP3225 7835032 PXVC220C20-04R020 22 - 2 - 22 - 29.5 - 19.6 - 45° / 48° XP3225 7835033 PXVC220C20-04R030 22 - 3 - 22 - 29.5 - 19.6 - 45° / 48° XP3225 7835034 PXVC250C25-04R000 25 - 0 - 25 - 35 - 24 - 45° / 48° XP3225 7835035 PXVC250C25-04R010 25 - 1 - 25 - 35 - 24 - 45° / 48° XP3225 7835036 PXVC250C25-04R020 25 - 2 - 25 - 35 - 24 - 45° / 48° XP3225 7835037 PXVC250C25-04R030 25 - 3 - 25 - 35 - 24 - 45° / 48° XP3225 Packed: 1 pc. 1284 OSG PHOENIX® PXM WWW.OSGTOOL.COM
