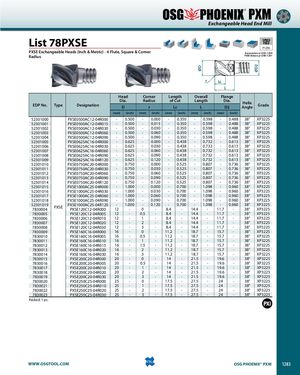

Общий каталог OSG 2018 - 2019 - страница 1283

ØD ØD2 ® PXM Exchangeable Head End Mill List 78PXSE SPEEDFEED P1295 PXSE Exchangeable Heads (Inch & Metric) - 4 Flute, Square & Corner Accessories: p1292-1294 Radius PXM Arbors: p1290-1291 r Lc L Head Corner Length Overall Flange EDP No. Type Designation Dia. D Radius of Cut LengthrLcL Dia.D2 HelixAngleGrade (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) 52301000 PXSE0500AC12-04R000 - 0.500 - 0.000 - 0.350 - 0.598 - 0.488 38° XP3225 52301001 PXSE0500AC12-04R015 - 0.500 - 0.015 - 0.350 - 0.598 - 0.488 38° XP3225 52301002 PXSE0500AC12-04R030 - 0.500 - 0.030 - 0.350 - 0.598 - 0.488 38° XP3225 52301003 PXSE0500AC12-04R060 - 0.500 - 0.060 - 0.350 - 0.598 - 0.488 38° XP3225 52301004 PXSE0500AC12-04R090 - 0.500 - 0.090 - 0.350 - 0.598 - 0.488 38° XP3225 52301005 PXSE0625AC16-04R000 - 0.625 - 0.000 - 0.438 - 0.732 - 0.613 38° XP3225 52301006 PXSE0625AC16-04R030 - 0.625 - 0.030 - 0.438 - 0.732 - 0.613 38° XP3225 52301007 PXSE0625AC16-04R060 - 0.625 - 0.060 - 0.438 - 0.732 - 0.613 38° XP3225 52301008 PXSE0625AC16-04R090 - 0.625 - 0.090 - 0.438 - 0.732 - 0.613 38° XP3225 52301009 PXSE0625AC16-04R120 - 0.625 - 0.120 - 0.438 - 0.732 - 0.613 38° XP3225 52301010 PXSE0750AC20-04R000 - 0.750 - 0.000 - 0.525 - 0.807 - 0.736 38° XP3225 52301011 PXSE0750AC20-04R030 - 0.750 - 0.030 - 0.525 - 0.807 - 0.736 38° XP3225 52301012 PXSE0750AC20-04R060 - 0.750 - 0.060 - 0.525 - 0.807 - 0.736 38° XP3225 52301013 PXSE0750AC20-04R090 - 0.750 - 0.090 - 0.525 - 0.807 - 0.736 38° XP3225 52301014 PXSE0750AC20-04R120 - 0.750 - 0.120 - 0.525 - 0.807 - 0.736 38° XP3225 52301015 PXSE1000AC25-04R000 - 1.000 - 0.000 - 0.700 - 1.098 - 0.960 38° XP3225 52301016 PXSE1000AC25-04R030 - 1.000 - 0.030 - 0.700 - 1.098 - 0.960 38° XP3225 52301017 PXSE1000AC25-04R060 - 1.000 - 0.060 - 0.700 - 1.098 - 0.960 38° XP3225 52301018 PXSE1000AC25-04R090 - 1.000 - 0.090 - 0.700 - 1.098 - 0.960 38° XP3225 523010197830004PXSE PXSE1000AC25-04R120PXSE120C12-04R000-121.000- -0 0.120 - 0.700 - 1.098 - 0.960 38°-8.4-14.4-11.7-38°XP3225XP3225 7830005 PXSE120C12-04R005 12 - 0.5 - 8.4 - 14.4 - 11.7 - 38° XP3225 7830006 PXSE120C12-04R010 12 - 1 - 8.4 - 14.4 - 11.7 - 38° XP3225 7830007 PXSE120C12-04R020 12 - 2 - 8.4 - 14.4 - 11.7 - 38° XP3225 7830008 PXSE120C12-04R030 12 - 3 - 8.4 - 14.4 - 11.7 - 38° XP3225 7830009 PXSE160C16-04R000 16 - 0 - 11.2 - 18.7 - 15.7 - 38° XP3225 7830010 PXSE160C16-04R005 16 - 0.5 - 11.2 - 18.7 - 15.7 - 38° XP3225 7830011 PXSE160C16-04R010 16 - 1 - 11.2 - 18.7 - 15.7 - 38° XP3225 7830012 PXSE160C16-04R015 16 - 1.5 - 11.2 - 18.7 - 15.7 - 38° XP3225 7830013 PXSE160C16-04R020 16 - 2 - 11.2 - 18.7 - 15.7 - 38° XP3225 7830014 PXSE160C16-04R030 16 - 3 - 11.2 - 18.7 - 15.7 - 38° XP3225 7830015 PXSE200C20-04R000 20 - 0 - 14 - 21.5 - 19.6 - 38° XP3225 7830016 PXSE200C20-04R005 20 - 0.5 - 14 - 21.5 - 19.6 - 38° XP3225 7830017 PXSE200C20-04R010 20 - 1 - 14 - 21.5 - 19.6 - 38° XP3225 7830018 PXSE200C20-04R020 20 - 2 - 14 - 21.5 - 19.6 - 38° XP3225 7830019 PXSE200C20-04R030 20 - 3 - 14 - 21.5 - 19.6 - 38° XP3225 7830020 PXSE250C25-04R000 25 - 0 - 17.5 - 27.5 - 24 - 38° XP3225 7830021 PXSE250C25-04R010 25 - 1 - 17.5 - 27.5 - 24 - 38° XP3225 7830022 PXSE250C25-04R020 25 - 2 - 17.5 - 27.5 - 24 - 38° XP3225 7830023 PXSE250C25-04R030 25 - 3 - 17.5 - 27.5 - 24 - 38° XP3225 Packed: 1 pc. WWW.OSGTOOL.COM OSG PHOENIX® PXM 1283
