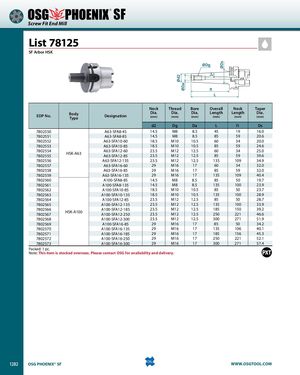

Общий каталог OSG 2018 - 2019 - страница 1282

Ød2 ØDa 3º ØDs ® SF Screw Fit End Mill List 78125 SF Arbor HSK ØDg l1 L Neck Thread Bore Overall Neck Taper EDP No. BodyType Dia. Dia. Dia. Length Length Dia.Designation(mm)(mm)(mm)(mm)(mm)(mm) d2 Dg Da L l1 Ds 7802550 A63-SFA8-45 14.5 M8 8.5 45 19 16.0 7802551 A63-SFA8-85 14.5 M8 8.5 85 59 20.6 7802552 A63-SFA10-60 18.5 M10 10.5 60 34 20.0 7802553 A63-SFA10-85 18.5 M10 10.5 85 59 24.6 78025547802555 HSK-A63 A63-SFA12-60A63-SFA12-8523.5 M12 12.5 60 34 25.023.5M1212.5855939.6 7802556 A63-SFA12-135 23.5 M12 12.5 135 109 34.9 7802557 A63-SFA16-60 29 M16 17 60 34 32.0 7802558 A63-SFA16-85 29 M16 17 85 59 32.0 7802559 A63-SFA16-135 29 M16 17 135 109 40.4 7802560 A100-SFA8-85 14.5 M8 8.5 85 50 19.7 7802561 A100-SFA8-135 14.5 M8 8.5 135 100 23.9 7802562 A100-SFA10-85 18.5 M10 10.5 85 50 23.7 7802563 A100-SFA10-135 18.5 M10 10.5 135 100 28.9 7802564 A100-SFA12-85 23.5 M12 12.5 85 50 28.7 7802565 A100-SFA12-135 23.5 M12 12.5 135 100 33.9 78025667802567 HSK-A100 A100-SFA12-185A100-SFA12-25023.5 M12 12.5 185 150 39.223.5M1212.525022146.6 7802568 A100-SFA12-300 23.5 M12 12.5 300 271 51.9 7802569 A100-SFA16-85 29 M16 17 85 50 34.2 7802570 A100-SFA16-135 29 M16 17 135 106 40.1 7802571 A100-SFA16-185 29 M16 17 185 156 45.3 7802572 A100-SFA16-250 29 M16 17 250 221 52.1 7802573 A100-SFA16-300 29 M16 17 300 271 57.4 Packed: 1 pc. Note: This item is stocked overseas. Please contact OSG for availability and delivery. 1282 OSG PHOENIX® SF WWW.OSGTOOL.COM
