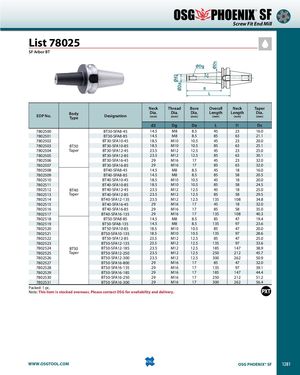

Ød2 ØDa 3º ØDs ® SF Screw Fit End Mill List 78025 SF Arbor BT ØDg l1 L Neck Thread Bore Overall Neck Taper EDP No. BodyType Dia. Dia. Dia. Length Length Dia.Designation(mm)(mm)(mm)(mm)(mm)(mm) d2 Dg Da L l1 Ds 7802500 BT30-SFA8-45 14.5 M8 8.5 45 23 16.0 7802501 BT30-SFA8-85 14.5 M8 8.5 85 63 21.1 7802502 BT30-SFA10-45 18.5 M10 10.5 45 23 20.0 7802503 BT30 BT30-SFA10-85 18.5 M10 10.5 85 63 25.1 7802504 Taper BT30-SFA12-45 23.5 M12 12.5 45 23 25.0 7802505 BT30-SFA12-85 23.5 M12 12.5 85 63 30.1 7802506 BT30-SFA16-45 29 M16 17 45 23 32.0 7802507 BT30-SFA16-85 29 M16 17 85 63 32.0 7802508 BT40-SFA8-45 14.5 M8 8.5 45 18 16.0 7802509 BT40-SFA8-85 14.5 M8 8.5 85 58 20.5 7802510 BT40-SFA10-45 18.5 M10 10.5 45 18 20.0 7802511 BT40-SFA10-85 18.5 M10 10.5 85 58 24.5 7802512 BT40 BT40-SFA12-45 23.5 M12 12.5 45 18 25.0 7802513 Taper BT40-SFA12-85 23.5 M12 12.5 85 58 29.5 7802514 BT40-SFA12-135 23.5 M12 12.5 135 108 34.8 7802515 BT40-SFA16-45 29 M16 17 45 18 32.0 7802516 BT40-SFA16-85 29 M16 17 85 58 35.0 7802517 BT40-SFA16-135 29 M16 17 135 108 40.3 7802518 BT50-SFA8-85 14.5 M8 8.5 85 47 19.4 7802519 BT50-SFA8-135 14.5 M8 8.5 135 97 23.6 7802520 BT50-SFA10-85 18.5 M10 10.5 85 47 20.0 7802521 BT50-SFA10-135 18.5 M10 10.5 135 97 28.6 7802522 BT50-SFA12-85 23.5 M12 12.5 85 47 25.0 7802523 BT50-SFA12-135 23.5 M12 12.5 135 97 33.6 7802524 BT50 BT50-SFA12-185 23.5 M12 12.5 185 147 38.9 7802525 Taper BT50-SFA12-250 23.5 M12 12.5 250 212 45.7 7802526 BT50-SFA12-300 23.5 M12 12.5 300 262 50.9 7802527 BT50-SFA16-800 29 M16 17 85 47 32.0 7802528 BT50-SFA16-135 29 M16 17 135 97 39.1 7802529 BT50-SFA16-185 29 M16 17 185 147 44.4 7802530 BT50-SFA16-250 29 M16 17 250 212 51.2 7802531 BT50-SFA16-300 29 M16 17 300 262 56.4 Packed: 1 pc. Note: This item is stocked overseas. Please contact OSG for availability and delivery. WWW.OSGTOOL.COM OSG PHOENIX® SF 1281
