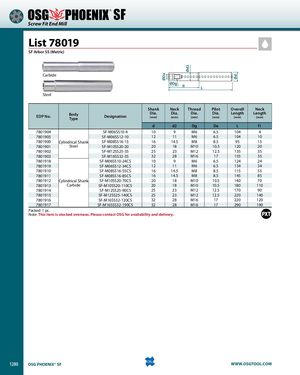

Общий каталог OSG 2018 - 2019 - страница 1280

ØDa Ød2 Ød ® SF Screw Fit End Mill List 78019 SF Arbor SS (Metric) Carbide ØDg l1 L Steel Shank Neck Thread Pilot Overall Neck EDP No. BodyType Dia. Dia. Dia. Dia. Length LengthDesignation(mm)(mm)(mm)(mm)(mm)(mm) d d2 Dg Da L l1 7801904 SF-M06SS10-4 10 9 M6 6.5 104 4 7801905 SF-M06SS12-10 12 11 M6 6.5 104 10 7801900 Cylindrical Shank SF-M08SS16-15 16 14.5 M8 8.5 95 15 7801901 Steel SF-M10SS20-20 20 18 M10 10.5 120 20 7801902 SF-M12SS25-35 25 23 M12 12.5 135 35 7801903 SF-M16SS32-35 32 28 M16 17 155 35 7801918 SF-M06SS10-24CS 10 9 M6 6.5 124 24 7801919 SF-M06SS12-34CS 12 11 M6 6.5 134 34 7801910 SF-M08SS16-55CS 16 14.5 M8 8.5 115 55 7801911 SF-M08SS16-85CS 16 14.5 M8 8.5 145 85 7801912 Cylindrical Shank SF-M10SS20-70CS 20 18 M10 10.5 140 70 7801913 Carbide SF-M10SS20-110CS 20 18 M10 10.5 180 110 7801914 SF-M12SS25-90CS 25 23 M12 12.5 170 90 7801915 SF-M12SS25-140CS 25 23 M12 12.5 220 140 7801916 SF-M16SS32-120CS 32 28 M16 17 220 120 7801917 SF-M16SSS32-190CS 32 28 M16 17 290 190 Packed: 1 pc. Note: This item is stocked overseas. Please contact OSG for availability and delivery. 1280 OSG PHOENIX® SF WWW.OSGTOOL.COM
