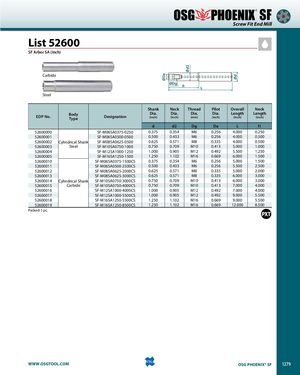

ØDa Ød2 Ød ® SF Screw Fit End Mill List 52600 SF Arbor SA (Inch) Carbide ØDg l1 L Steel Shank Neck Thread Pilot Overall Neck EDP No. BodyType Dia. Dia. Dia. Dia. Length LengthDesignation(inch)(inch)(mm)(inch)(inch)(inch) d d2 Dg Da L l1 52600000 SF-M06SA0375-0250 0.375 0.354 M6 0.256 4.000 0.250 52600001 SF-M06SA0500-0500 0.500 0.433 M6 0.256 4.000 0.500 52600002 Cylindrical Shank SF-M08SA0625-0500 0.625 0.571 M8 0.335 4.000 0.500 52600003 Steel SF-M10SA0750-1000 0.750 0.709 M10 0.413 5.000 1.000 52600004 SF-M12SA1000-1250 1.000 0.905 M12 0.492 5.500 1.250 52600005 SF-M16SA1250-1500 1.250 1.102 M16 0.669 6.000 1.500 52600010 SF-M06SA0375-1500CS 0.375 0.354 M6 0.256 5.000 1.500 52600011 SF-M06SA0500-2500CS 0.500 0.433 M6 0.256 5.500 2.500 52600012 SF-M08SA0625-2000CS 0.625 0.571 M8 0.335 5.000 2.000 52600013 SF-M08SA0625-3000CS 0.625 0.571 M8 0.335 6.000 3.000 52600014 Cylindrical Shank SF-M10SA0750-3000CS 0.750 0.709 M10 0.413 6.000 3.000 52600015 Carbide SF-M10SA0750-4000CS 0.750 0.709 M10 0.413 7.000 4.000 52600016 SF-M12SA1000-4000CS 1.000 0.905 M12 0.492 7.000 4.000 52600017 SF-M12SA1000-5500CS 1.000 0.905 M12 0.492 9.000 5.500 52600018 SF-M16SA1250-5500CS 1.250 1.102 M16 0.669 9.000 5.500 52600019 SF-M16SA1250-8500CS 1.250 1.102 M16 0.669 12.000 8.500 Packed: 1 pc. WWW.OSGTOOL.COM OSG PHOENIX® SF 1279
