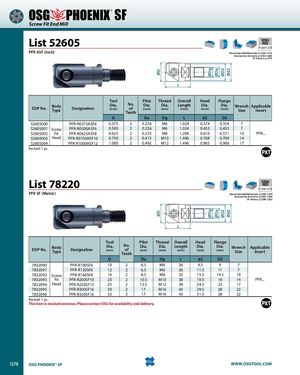

Общий каталог OSG 2018 - 2019 - страница 1278

ØDØD ØDgØDg ØDaØDa ØD2ØD2 Ød2Ød2 ® SF Screw Fit End Mill List 52605 SPEEDFEED P1269-1270 PFR ASF (Inch) Recommended Materials: p1269-1270 Accessories & Inserts: p1263-1268 SF Arbors: p1279 L Tool Pilot Thread Overall Head Flange EDP No. BodyType Designation Dia. No. Dia. Dia. Length Dia.(inch)of(inch)(mm)(inch)(inch)TeethDia.WrenchApplicable(inch)SizeInsert D Da Dg L d2 D2 52605000 PFR-R0375ASF6 0.375 2 0.256 M6 1.024 0.374 0.354 7 52605001 Screw PFR-R0500ASF6 0.500 2 0.256 M6 1.024 0.453 0.433 7 52605002 Fit PFR-R0625ASF8 0.625 2 0.335 M8 1.260 0.610 0.571 10 PFR... 52605003 Head PFR-R0750ASF10 0.750 2 0.413 M10 1.496 0.768 0.709 14 52605004 PFR-R1000ASF12 1.000 2 0.492 M12 1.496 0.965 0.906 17 Packed: 1 pc. List 78220 SPEEDFEED P1269-1270 PFR SF (Metric) Recommended Materials: p1269-1270 Accessories & Inserts: p1263-1268 SF Arbors: p1280-1282 L Tool Pilot Thread Overall Head Flange EDP No. BodyType Designation Dia. No. Dia. Dia. Length Dia.(mm)of(mm)(mm)(mm)(mm)TeethDia.WrenchApplicable(mm)SizeInsert D Da Dg L d2 D2 7832090 PFR-R100SF6 10 2 6.5 M6 26 9.5 9 7 7832091 PFR-R120SF6 12 2 6.5 M6 26 11.5 11 7 7832092 Screw PFR-R160SF8 16 2 8.5 M8 32 15.5 14.5 10 7832093 Fit PFR-R200SF10 20 2 10.5 M10 38 19.5 18 14 PFR... 7832094 Head PFR-R250SF12 25 2 12.5 M12 38 24.5 23 17 7832095 PFR-R300SF16 30 2 17 M16 43 29.5 28 22 7832096 PFR-R320SF16 32 2 17 M16 43 31.5 28 22 Packed: 1 pc. This item is stocked overseas. Please contact OSG for availability and delivery. 1278 OSG PHOENIX® SF WWW.OSGTOOL.COM
