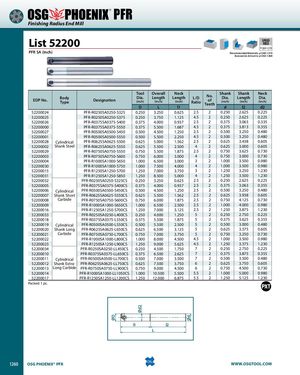

Общий каталог OSG 2018 - 2019 - страница 1260

® PFR Finishing Radius End Mill List 52200 SPEEDFEED P1269-1270 PFR SA (Inch) Recommended Materials: p1269-1270 Accessories & Inserts: p1263-1268 EDP No. BodyType Designation ToolDia. (inch) OverallLength(inch)NeckLength(inch)L/DRatioNo.ofTeethShankDia.(inch)ShankLength(inch)NeckDia.(inch) D L l1 d l2 d2 52200024 PFR-R0250SA0250-S325 0.250 3.250 0.625 2.5 2 0.250 2.625 0.225 52200025 PFR-R0250SA0250-S375 0.250 3.750 1.125 4.5 2 0.250 2.625 0.225 52200026 PFR-R0375SA0375-S400 0.375 4.000 0.937 2.5 2 0.375 3.063 0.335 52200000 PFR-R0375SA0375-S550 0.375 5.500 1.687 4.5 2 0.375 3.813 0.355 52200027 PFR-R0500SA0500-S450 0.500 4.500 1.250 2.5 2 0.500 3.250 0.480 52200001 PFR-R0500SA0500-S550 0.500 5.500 2.250 4.5 2 0.500 3.250 0.480 52200028 Cylindrical PFR-R0625SA0625-S500 0.625 5.000 1.562 2.5 2 0.625 3.438 0.605 52200002 Shank Steel PFR-R0625SA0625-S550 0.625 5.500 2.500 4 2 0.625 3.000 0.605 52200029 PFR-R0750SA0750-S550 0.750 5.500 1.875 2.5 2 0.750 3.625 0.730 52200003 PFR-R0750SA0750-S600 0.750 6.000 3.000 4 2 0.750 3.000 0.730 52200004 PFR-R1000SA1000-S650 1.000 6.500 3.000 3 2 1.000 3.500 0.980 52200030 PFR-R1000SA1000-S750 1.000 7.500 4.000 4 2 1.000 3.500 0.980 52200015 PFR-R1250SA1250-S700 1.250 7.000 3.750 3 2 1.250 3.250 1.230 52200031 PFR-R1250SA1250-S850 1.250 8.500 5.000 4 2 1.250 3.500 1.230 52200032 PFR-R0250SA0250-S325CS 0.250 3.250 0.625 2.5 2 0.250 2.625 0.225 52200005 PFR-R0375SA0375-S400CS 0.375 4.000 0.937 2.5 2 0.375 3.063 0.355 52200006 Cylindrical PFR-R0500SA0500-S450CS 0.500 4.500 1.250 2.5 2 0.500 3.250 0.480 52200007 Shank Short PFR-R0625SA0625-S550CS 0.625 5.500 1.562 2.5 2 0.625 3.938 0.605 52200008 Carbide PFR-R0750SA0750-S600CS 0.750 6.000 1.875 2.5 2 0.750 4.125 0.730 52200009 PFR-R1000SA1000-S650CS 1.000 6.500 2.500 2.5 2 1.000 4.000 0.980 52200016 PFR-R1250SA1250-S700CS 1.250 7.000 3.125 2.5 2 1.250 3.875 1.230 52200033 PFR-R0250SA0250-L400CS 0.250 4.000 1.250 5 2 0.250 2.750 0.225 52200018 PFR-R0375SA0375-L550CS 0.375 5.500 1.875 5 2 0.375 3.625 0.355 52200019 Cylindrical PFR-R0500SA0500-L550CS 0.500 5.500 2.500 5 2 0.500 3.000 0.480 52200020 Shank Long PFR-R0625SA0625-L650CS 0.625 6.500 3.125 5 2 0.625 3.375 0.605 52200021 Carbide PFR-R0750SA0750-L700CS 0.750 7.000 3.750 5 2 0.750 3.250 0.730 52200022 PFR-R1000SA1000-L800CS 1.000 8.000 4.500 4.5 2 1.000 3.500 0.980 52200023 PFR-R1250SA1250-L900CS 1.250 9.000 5.625 4.5 2 1.250 3.375 1.230 52200034 PFR-R0250SA0250-LL450CS 0.250 4.500 1.750 7 2 0.250 2.750 0.225 52200010 PFR-R0375SA0375-LL650CS 0.375 6.500 2.625 7 2 0.375 3.875 0.355 52200011 Cylindrical PFR-R0500SA0500-LL700CS 0.500 7.000 3.500 7 2 0.500 3.500 0.480 52200012 Shank Extra- PFR-R0625SA0625-LL750CS 0.625 7.500 3.750 6 2 0.625 3.750 0.605 52200013 Long Carbide PFR-R0750SA0750-LL900CS 0.750 9.000 4.500 6 2 0.750 4.500 0.730 52200014 PFR-R1000SA1000-LL1050CS 1.000 10.500 5.500 5.5 2 1.000 5.000 0.980 52200017 PFR-R1250SA1250-LL1200CS 1.250 12.000 6.875 5.5 2 1.250 5.125 1.230 Packed: 1 pc. l1 l2 L 1260 OSG PHOENIX® PFR WWW.OSGTOOL.COM ØD Ød2 Ød
