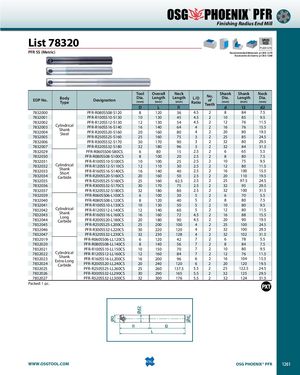

® PFR Finishing Radius End Mill List 78320 SPEEDFEED P1269-1270 PFR SS (Metric) Recommended Materials: p1269-1270 Accessories & Inserts: p1263-1268 EDP No. BodyType Designation ToolDia. (mm) OverallLength(mm)NeckLength(mm)L/DRatioNo.ofTeethShankDia.(mm)ShankLength(mm)NeckDia.(mm) D L l1 d l2 d2 7832000 PFR-R080SS08-S120 8 120 36 4.5 2 8 84 7.5 7832001 PFR-R100SS10-S130 10 130 45 4.5 2 10 85 9.5 7832002 PFR-R120SS12-S130 12 130 54 4.5 2 12 76 11.5 78320037832004CylindricalShankSteelPFR-R160SS16-S140PFR-R200SS20-S16016 140 64 4 2 16 76 15.5201608042208019.5 7832005 PFR-R250SS25-S160 25 160 75 3 2 25 85 24.5 7832006 PFR-R300SS32-S170 30 170 90 3 2 32 80 29.5 7832007 PFR-R320SS32-S180 32 180 96 3 2 32 84 31.5 7832029 PFR-R060SS06-S80CS 6 80 15 2.5 2 6 65 5.5 7832030 PFR-R080SS08-S100CS 8 100 20 2.5 2 8 80 7.5 7832031 PFR-R100SS10-S100CS 10 100 25 2.5 2 10 75 9.5 7832032 Cylindrical PFR-R120SS12-S110CS 12 110 30 2.5 2 12 80 11.5 78320337832034 ShankShortCarbidePFR-R160SS16-S140CSPFR-R200SS20-S160CS16 14020160 40 2.5 2 16 100 15.5502.522011019.5 7832035 PFR-R250SS25-S160CS 25 160 62.5 2.5 2 25 97.5 24.5 7832036 PFR-R300SS32-S170CS 30 170 75 2.5 2 32 95 29.5 7832037 PFR-R320SS32-S180CS 32 180 80 2.5 2 32 100 31.5 7832039 PFR-R060SS06-L100CS 6 100 30 5 2 6 70 5.5 7832040 PFR-R080SS08-L120CS 8 120 40 5 2 8 80 7.5 7832041 PFR-R100SS10-L130CS 10 130 50 5 2 10 80 9.5 78320427832043CylindricalShankLongPFR-R120SS12-L140CSPFR-R160SS16-L160CS12 140161607832044CarbidePFR-R200SS20-L180CS20180605212 80 11.5724.52168815.5904.52209019.5 7832045 PFR-R250SS25-L200CS 25 200 100 4 2 25 100 24.5 7832046 PFR-R300SS32-L220CS 30 220 120 4 2 32 100 29.5 7832047 PFR-R320SS32-L230CS 32 230 128 4 2 32 102 31.5 7832019 PFR-R060SS06-LL120CS 6 120 42 7 2 6 78 5.5 7832020 PFR-R080SS08-LL140CS 8 140 56 7 2 8 84 7.5 7832021 PFR-R100SS10-LL150CS 10 150 70 7 2 10 80 9.5 783202278320237832024CylindricalShankExtra-LongCarbidePFR-R120SS12-LL160CSPFR-R160SS16-LL200CSPFR-R200SS20-LL240CS12162016020024084721276 11.596621610415.5120622012019.5 7832025 PFR-R250SS25-LL260CS 25 260 137.5 5.5 2 25 122.5 24.5 7832026 PFR-R300SS32-LL290CS 30 290 165 5.5 2 32 125 29.5 7832027 PFR-R320SS32-LL300CS 32 300 176 5.5 2 32 124 31.5 Packed: 1 pc. l1 l2 L WWW.OSGTOOL.COM OSG PHOENIX® PFR 1261 ØD Ød2 Ød
