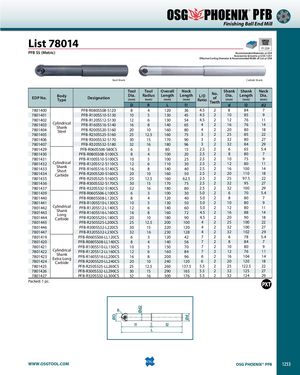

® PFB Finishing Ball End Mill List 78014 SPEEDFEED P1259 PFB SS (Metric) Recommended Materials: p1259 Accessories & Inserts: p1255-1257 Effective Cutting Diameter & Recommended Width of Cut: p1258 Steel Shank Carbide Shank EDP No. BodyType Designation ToolDia.(mm)ToolRadius(mm)OverallLength(mm)NeckLength(mm)L/DRatioNo.ofTeethShankDia.(mm)ShankLength(mm)NeckDia.(mm) D R L l1 d l2 d2 7801400 PFB-R080SS08-S120 8 4 120 36 4.5 2 8 84 7 7801401 PFB-R100SS10-S130 10 5 130 45 4.5 2 10 85 9 7801402 PFB-R120SS12-S130 12 6 130 54 4.5 2 12 76 11 78014037801404CylindricalShankSteelPFB-R160SS16-S140PFB-R200SS20-S160 16 82010 140160 65 4 2 16 7680422080 1418 7801405 PFB-R250SS25-S160 25 12.5 160 75 3 2 25 85 22 7801406 PFB-R300SS32-S170 30 15 170 90 3 2 32 80 27 7801407 PFB-R320SS32-S180 32 16 180 96 3 2 32 84 29 7801429 PFB-R060SS06-S80CS 6 3 80 15 2.5 2 6 65 5.4 7801430 PFB-R080SS08-S100CS 8 4 100 20 2.5 2 8 80 7 7801431 PFB-R100SS10-S100CS 10 5 100 25 2.5 2 10 75 9 7801432 Cylindrical PFB-R120SS12-S110CS 12 6 110 30 2.5 2 12 80 11 78014337801434 ShankShortCarbidePFB-R160SS16-S140CSPFB-R200SS20-S160CS 1620 810 140160 40 2.5 2 16 100 14502.522011018 7801435 PFB-R250SS25-S160CS 25 12.5 160 62.5 2.5 2 25 97.5 22 7801436 PFB-R300SS32-S170CS 30 15 170 75 2.5 2 32 95 27 7801437 PFB-R320SS32-S180CS 32 16 180 80 2.5 2 32 100 29 7801439 PFB-R060SS06-L100CS 6 3 100 30 5.0 2 6 70 5.4 7801440 PFB-R080SS08-L120CS 8 4 120 40 5.0 2 8 80 7 7801441 PFB-R100SS10-L130CS 10 5 130 50 5.0 2 10 80 9 78014427801443CylindricalShankLongPFB-R120SS12-L140CSPFB-R160SS16-L160CS 1216 687801444CarbidePFB-R200SS20-L180CS2010140160180605.0212 80724.521688904.522090111418 7801445 PFB-R250SS25-L200CS 25 12.5 200 100 4 2 25 100 22 7801446 PFB-R300SS32-L220CS 30 15 220 120 4 2 32 100 27 7801447 PFB-R320SS32-L230CS 32 16 230 128 4 2 32 102 29 7801419 PFB-R060SS06-LL120CS 6 3 120 42 7 2 6 78 5.4 7801420 PFB-R080SS08-LL140CS 8 4 140 56 7 2 8 84 7 7801421 PFB-R100SS10-LL150CS 10 5 150 70 7 2 10 80 9 7801422 Cylindrical PFB-R120SS12-LL160CS 12 6 160 84 7 2 12 76 11 78014237801424 ShankExtra-LongCarbidePFB-R160SS16-LL200CSPFB-R200SS20-LL240CS1620 810 200 96 6 2 16 104 14240120622012018 7801425 PFB-R250SS25-LL260CS 25 12.5 260 137.5 5.5 2 25 122.5 22 7801426 PFB-R300SS32-LL290CS 30 15 290 165 5.5 2 32 125 27 7801427 PFB-R320SS32-LL300CS 32 16 300 176 5.5 2 32 124 29 Packed: 1 pc. R l1 l2 L WWW.OSGTOOL.COM OSG PHOENIX® PFB 1253 ØD Ød2 Ød
