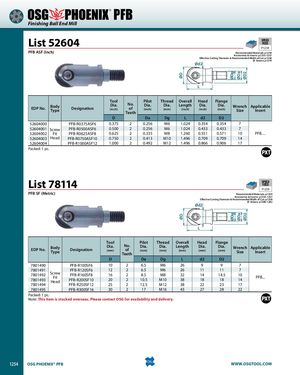

Общий каталог OSG 2018 - 2019 - страница 1254

ØDØD ØDgØDg ØDaØDa ØD2ØD2 ® PFB Finishing Ball End Mill List 52604 SPEEDFEED P1259 PFB ASF (Inch) Recommended Materials: p1259 Accessories & Inserts: p1255-1257 Effective Cutting Diameter & Recommended Width of Cut: p1258 SF Arbors: p1279 Ød2 L Tool Pilot Thread Overall Head Flange EDP No. BodyType Designation Dia. No. Dia.(inch)of(inch)TeethDia.Length Dia. Dia. Wrench Applicable(mm)(inch)(inch)(inch)SizeInsert D Da Dg L d2 D2 52604000 PFB-R0375ASF6 0.375 2 0.256 M6 1.024 0.354 0.354 7 52604001 Screw PFB-R0500ASF6 0.500 2 0.256 M6 1.024 0.433 0.433 7 52604002 Fit PFB-R0625ASF8 0.625 2 0.335 M8 1.260 0.551 0.571 10 PFB… 52604003 Head PFB-R0750ASF10 0.750 2 0.413 M10 1.496 0.709 0.709 14 52604004 PFB-R1000ASF12 1.000 2 0.492 M12 1.496 0.866 0.906 17 Packed: 1 pc. List 78114 SPEEDFEED P1259 PFB SF (Metric) Recommended Materials: p1259 Accessories & Inserts: p1255-1257 Effective Cutting Diameter & Recommended Width of Cut: p1258 SF Arbors: p1280-1282 Ød2 L Tool Pilot Thread Overall Head Flange EDP No. BodyType Designation Dia. No. Dia.(mm)of(mm)TeethDia. Length Dia.(mm)(mm)(mm)Dia. Wrench Applicable(mm)SizeInsert D Da Dg L d2 D2 7801490 PFB-R100SF6 10 2 6.5 M6 26 9 9 7 7801491 PFB-R120SF6 12 2 6.5 M6 26 11 11 7 78014927801493ScrewFitHeadPFB-R160SF8PFB-R200SF1016 2 8.5 M8 3220210.5M10381418 14.5 101814 PFB... 7801494 PFB-R250SF12 25 2 12.5 M12 38 22 23 17 7801495 PFB-R300SF16 30 2 17 M16 43 27 28 22 Packed: 1 pc. Note: This item is stocked overseas. Please contact OSG for availability and delivery. 1254 OSG PHOENIX® PFB WWW.OSGTOOL.COM
