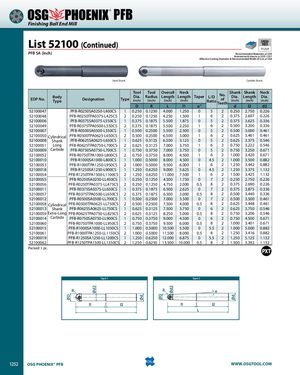

Общий каталог OSG 2018 - 2019 - страница 1252

® PFB Finishing Ball End Mill List 52100 (Continued) SPEEDFEED P1259 PFB SA (Inch) Recommended Materials: p1259 Accessories & Inserts: p1255-1257 Effective Cutting Diameter & Recommended Width of Cut: p1258 Steel Shank Carbide Shank EDP No. BodyType Designation ToolTypeDia.(inch)ToolRadius(inch)OverallNeckLengthLength(inch)(inch)TaperL/D Ratio No. of TeethShankDia.(inch)ShankLength(inch)NeckDia.(inch) D R L l1 α° d l2 d2 52100047 PFB-R0250SA0250-L400CS 1 0.250 0.1250 4.000 1.250 0 5 2 0.250 2.750 0.226 52100048 PFB-R0250TPA0375-L425CS 2 0.250 0.1250 4.250 1.500 1 6 2 0.375 2.697 0.226 52100006 PFB-R0375SA0375-L550CS 1 0.375 0.1875 5.500 1.875 0 5 2 0.375 3.625 0.336 52100049 PFB-R0375TPA0500-L550CS 2 0.375 0.1875 5.500 2.250 1 6 2 0.500 3.200 0.336 52100007 PFB-R0500SA0500-L550CS 1 0.500 0.2500 5.500 2.500 0 5 2 0.500 3.000 0.461 52100050 Cylindrical PFB-R0500TPA0625-L650CS 2 0.500 0.2500 6.500 3.000 1 6 2 0.625 3.461 0.461 52100008 Shank PFB-R0625SA0625-L650CS 1 0.625 0.3125 6.500 3.125 0 5 2 0.625 3.375 0.546 52100051 Long PFB-R0625TPA0750-L700CS 2 0.625 0.3125 7.000 3.750 1 6 2 0.750 3.222 0.546 52100009 Carbide PFB-R0750SA0750-L700CS 1 0.750 0.3750 7.000 3.750 0 5 2 0.750 3.250 0.671 52100052 PFB-R0750TPA1000-L800CS 2 0.750 0.3750 8.000 4.500 1 6 2 1.000 3.420 0.671 52100010 PFB-R1000SA1000-L800CS 1 1.000 0.5000 8.000 4.500 0 4.5 2 1.000 3.500 0.882 52100053 PFB-R1000TPA1250-L950CS 2 1.000 0.5000 9.500 6.000 1 6 2 1.250 3.442 0.882 52100018 PFB-R1250SA1250-L900CS 1 1.250 0.6250 9.000 5.625 0 4.5 2 1.250 3.375 1.132 52100054 PFB-R1250TPA1500-L1100CS 2 1.250 0.6250 11.000 7.500 1 6 2 1.500 3.425 1.132 52100055 PFB-R0250SA0250-LL450CS 1 0.250 0.1250 4.500 1.750 0 7 2 0.250 2.750 0.226 52100056 PFB-R0250TPA0375-LL475CS 2 0.250 0.1250 4.750 2.000 0.5 8 2 0.375 2.690 0.226 52100011 PFB-R0375SA0375-LL650CS 1 0.375 0.1875 6.500 2.625 0 7 2 0.375 3.875 0.336 52100057 PFB-R0375TPA0500-LL650CS 2 0.375 0.1875 6.500 3.000 0.5 8 2 0.500 3.440 0.336 52100012 PFB-R0500SA0500-LL700CS 1 0.500 0.2500 7.000 3.500 0 7 2 0.500 3.500 0.461 52100058 Cylindrical PFB-R0500TPA0625-LL750CS 2 0.500 0.2500 7.500 4.000 0.5 8 2 0.625 3.448 0.461 52100013 Shank PFB-R0625SA0625-LL750CS 1 0.625 0.3125 7.500 3.750 0 6 2 0.625 3.750 0.546 52100059 Extra-Long PFB-R0625TPA0750-LL825CS 2 0.625 0.3125 8.250 5.000 0.5 8 2 0.750 3.206 0.546 52100014 Carbide PFB-R0750SA0750-LL900CS 1 0.750 0.3750 9.000 4.500 0 6 2 0.750 4.500 0.671 52100060 PFB-R0750TPA1000-LL950CS 2 0.750 0.3750 9.500 6.000 0.5 8 2 1.000 3.401 0.671 52100015 PFB-R1000SA1000-LL1050CS 1 1.000 0.5000 10.500 5.500 0 5.5 2 1.000 5.000 0.882 52100061 PFB-R1000TPA1250-LL1150CS 2 1.000 0.5000 11.500 8.000 0.5 8 2 1.250 3.416 0.882 52100019 PFB-R1250SA1250-LL1200CS 1 1.250 0.6250 12.000 6.875 0 5.5 2 1.250 5.125 1.132 52100062 PFB-R1250TPA1500-LL1350CS 2 1.250 0.6250 13.500 10.000 0.5 8 2 1.500 3.392 1.132 Packed: 1 pc. Type 1 Type 2 R R α l1 l2 l1 l2 L L 1252 OSG PHOENIX® PFB WWW.OSGTOOL.COM ØD Ød2 Ød ØD Ød2 Ød
