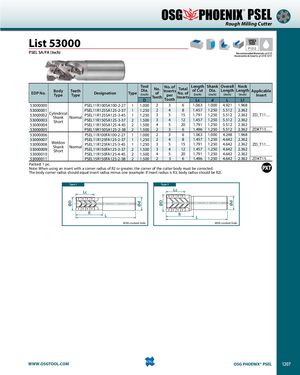

® PSEL Rough Milling Cutter List 53000 SPEEDFEED P1212 PSEL SA/FA (Inch) Recommended Materials: p1213 Accessories & Inserts: p1210-1211 EDP No. BodyType TeethType Designation Type ToolDia. (inch)D No. of Teeth No. of Inserts per Tooth Total No. of Inserts Length of Cut (inch) Lc ShankDia.(inch)dOverallLength(inch)LNeckLength(inch)L1ApplicableInsert 53000000 PSEL11R100SA100-2-27 1 1.000 2 3 6 1.063 1.000 4.921 1.968 53000001 PSEL11R125SA125-2-37 1 1.250 2 4 8 1.457 1.250 5.512 2.362 5300000253000003CylindricalShankNormalShortPSEL11R125SA125-3-45PSEL11R150SA125-3-37121.2501.50033 54 15 1.791 1.250 5.512 2.362 ZD_T11…121.4571.2505.5122.362 53000004 PSEL11R150SA125-4-45 2 1.500 4 5 20 1.791 1.250 5.512 2.362 53000005 PSEL15R150SA125-2-38 2 1.500 2 3 6 1.496 1.250 5.512 2.362 ZDKT15… 53000006 PSEL11R100FA100-2-27 1 1.000 2 3 6 1.063 1.000 4.248 1.968 53000007 PSEL11R125FA125-2-37 1 1.250 2 4 8 1.457 1.250 4.642 2.362 5300000853000009WeldonShankShortNormal PSEL11R125FA125-3-45PSEL11R150FA125-3-37121.2501.50033 54 15 1.791 1.250 4.642 2.362 ZD_T11…121.4571.2504.6422.362 53000010 PSEL11R150FA125-4-45 2 1.500 4 5 20 1.791 1.250 4.642 2.362 53000011 PSEL15R150FA125-2-38 2 1.500 2 3 6 1.496 1.250 4.642 2.362 ZDKT15… Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). Type 1 Type 2 Lc Lc l1 L l1 L With coolant hole. With coolant hole. WWW.OSGTOOL.COM OSG PHOENIX® PSEL 1207 ØD Ød ØD Ød
