Общий каталог OSG 2018 - 2019 - страница 1206

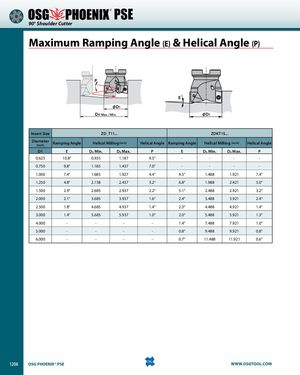

® PSE P 90° Shoulder Cutter φD1 Maximum Ramping Angle (E) & Helical D0Max./Min. Angle (P) P E φD1 D0 Max./Min. φD1 Insert Size ZD_T11... ZDKT15... Diameter(inch) Ramping Angle Helical Milling(inch) Helical Angle Ramping Angle Helical Milling (inch) Helical Angle D1 E D0 Min. D0 Max. P E D0 Min. D0 Max. P 0.625 10.8° 0.935 1.187 9.5° - - - - 0.750 9.8° 1.185 1.437 7.0° - - - - E 1.000 7.4° 1.685 1.927 4.4° 9.5° 1.488 1.921 7.4° 1.250 4.8° 2.158 2.437 3.2° 6.8° 1.988 2.421 5.0° φD1 1.500 2.9° 2.685 2.937 2.2° 5.1° 2.488 2.921 3.2° 2.000 2.1° 3.685 3.937 1.6° 2.4° 3.488 3.921 2.4° 2.500 1.8° 4.685 4.937 1.4° 2.3° 4.488 4.921 1.4° 3.000 1.4° 5.685 5.937 1.0° 2.0° 5.488 5.921 1.3° 4.000 - - - - 1.4° 7.488 7.921 1.0° 5.000 - - - - 0.8° 9.488 9.921 0.8° 6.000 - - - - 0.7° 11.488 11.921 0.6° 1206 OSG PHOENIX® PSE WWW.OSGTOOL.COM
