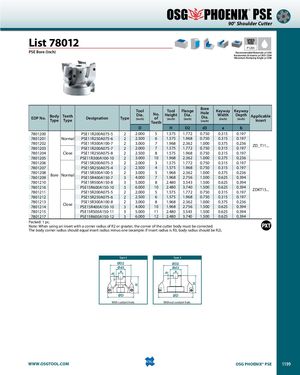

Общий каталог OSG 2018 - 2019 - страница 1199

® PSE 90° Shoulder Cutter List 78012 SPEEDFEED P1205 PSE Bore (Inch) Recommended Materials: p1205 Accessories & Inserts: p1203-1204 Maximum Ramping Angle: p1206 EDP No. BodyType TeethType Designation Type ToolDia.(inch) Tool FlangeNo.HeightDia.of(inch)(inch)TeethBoreHoleDia.(inch)KeywayKeywayWidthDepthApplicable(inch)(inch)Insert D H D2 d3 a b 7801200 PSE11R200A075-5 2 2.000 5 1.575 1.772 0.750 0.315 0.197 7801201 Normal PSE11R250A075-6 2 2.500 6 1.575 1.968 0.750 0.315 0.197 78012027801203 PSE11R300A100-7PSE11R200A075-72 3.00022.000 77 1.968 2.362 1.0001.5751.7720.7500.3750.3150.2360.197ZD_T11... 7801204 Close PSE11R250A075-8 2 2.500 8 1.575 1.968 0.750 0.315 0.197 7801205 PSE11R300A100-10 2 3.000 10 1.968 2.362 1.000 0.375 0.236 7801206 PSE15R200A075-3 2 2.000 3 1.575 1.772 0.750 0.315 0.197 7801207 PSE15R250A075-4 2 2.500 4 1.575 1.968 0.750 0.315 0.197 78012087801209BoreNormal PSE15R300A100-5PSE15R400A150-72 3.00034.000 5 1.968 2.362 1.000 0.375 0.23671.9682.7561.5000.6250.394 7801210 PSE15R500A150-8 3 5.000 8 2.480 3.543 1.500 0.625 0.394 78012167801211 PSE15R600A150-10PSE15R200A075-532 6.0002.000 10 2.480 3.740 1.50051.5751.7720.7500.6250.3150.3940.197ZDKT15... 7801212 PSE15R250A075-6 2 2.500 6 1.575 1.968 0.750 0.315 0.197 78012137801214 Close PSE15R300A100-8PSE15R400A150-1023 3.0004.000 8 1.968 2.362 1.000 0.375 0.236101.9682.7561.5000.6250.394 7801215 PSE15R500A150-11 3 5.000 11 2.480 3.543 1.500 0.625 0.394 7801217 PSE15R600A150-12 3 6.000 12 2.480 3.740 1.500 0.625 0.394 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). Type 2 Type 3 ØD2 ØD2 Ød3 Ød3 a a ØD ØD With coolant hole. Without coolant hole. WWW.OSGTOOL.COM OSG PHOENIX® PSE 1199 b H b H
