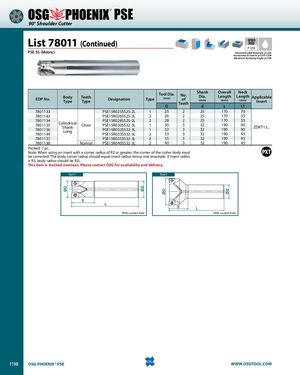

ØD Ød ØD Ød ® PSE 90° Shoulder Cutter List 78011 (Continued) SPEEDFEED P1205 PSE SS (Metric) Recommended Materials: p1205 Accessories & Inserts: p1203-1204 Maximum Ramping Angle: p1206 EDP No. Body TeethTypeType Designation Tool Dia. No.Type(mm)ofShankDia.(mm)DTeethdOverall NeckLengthLengthApplicable(mm)(mm)InsertLL1 7801133 PSE15R025SS25-2L 1 25 2 25 170 70 7801143 PSE15R026SS25-2L 2 26 2 25 170 35 7801134780113578011367801144CylindricalShankCloseLongPSE15R028SS25-2LPSE15R030SS32-3LPSE15R032SS32-3LPSE15R033SS32-3L211228303233233325323232170 351901909090ZDKT15...19045 7801137 PSE15R035SS32-3L 2 35 3 32 190 45 7801138 Normal PSE15R040SS32-3L 2 40 3 32 190 45 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). This item is stocked overseas. Please contact OSG for availability and delivery. Type 1 Type 2 l1 L l1 L With coolant hole. With coolant hole. 1198 OSG PHOENIX® PSE WWW.OSGTOOL.COM
