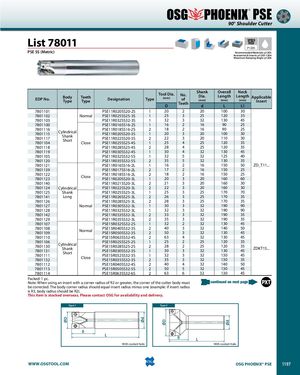

® PSE 90° Shoulder Cutter List 78011 SPEEDFEED P1205 PSE SS (Metric) Recommended Materials: p1205 Accessories & Inserts: p1203-1204 Maximum Ramping Angle: p1206 EDP No. Body TeethTypeType Designation Tool Dia. No.Type(mm)ofShankDia.(mm)DTeethdOverall NeckLengthLengthApplicable(mm)(mm)InsertLL1 7801101 PSE11R020SS20-2S 1 20 2 20 100 30 7801102 Normal PSE11R025SS25-3S 1 25 3 25 120 35 7801103 PSE11R032SS32-3S 1 32 3 32 130 45 7801100 PSE11R016SS16-2S 1 16 2 16 90 25 7801116780111578011177801104CylindricalShankShortClosePSE11R018SS16-2SPSE11R020SS20-3SPSE11R022SS20-3SPSE11R025SS25-4S21211820222523341620202590 25100301103012035 7801118 PSE11R028SS25-4S 2 28 4 25 120 35 7801119 PSE11R030SS32-4S 1 30 4 32 130 45 7801105 PSE11R032SS32-5S 1 32 5 32 125 40 7801120 PSE11R035SS32-5S 2 35 5 32 130 35 7801121 PSE11R016SS16-2L 1 16 2 16 150 50 ZD_T11... 7801139 PSE11R017SS16-2L 2 17 2 16 150 25 78011227801123 Close PSE11R018SS16-2LPSE11R020SS20-3L 21 1820 23 1620 150 2516060 7801140 PSE11R021SS20-3L 2 21 3 20 160 30 7801124 Cylindrical PSE11R022SS20-3L 2 22 3 20 160 30 7801125 Shank PSE11R025SS25-3L 1 25 3 25 170 70 7801141 Long PSE11R026SS25-3L 2 26 3 25 170 35 7801126 PSE11R028SS25-3L 2 28 3 25 170 35 7801127 Normal PSE11R030SS32-3L 1 30 3 32 190 90 7801128 PSE11R032SS32-3L 1 32 3 32 190 90 7801142 PSE11R033SS32-3L 2 33 3 32 190 35 7801129 PSE11R035SS32-3L 2 35 3 32 190 35 7801107 PSE15R032SS32-2S 1 32 2 32 130 45 78011087801109 Normal PSE15R040SS32-3SPSE15R050SS32-3S 22 4050 33 3232 140 5013045 7801110 PSE15R063SS32-4S 2 63 4 32 130 45 78011067801130780113178011117801132CylindricalShankShortClosePSE15R025SS25-2SPSE15R028SS25-2SPSE15R030SS32-3SPSE15R032SS32-3SPSE15R035SS32-3S121122528303235223332525323232120351201303545ZDKT15...1304513035 7801112 PSE15R040SS32-4S 2 40 4 32 140 50 7801113 PSE15R050SS32-5S 2 50 5 32 130 45 7801114 PSE15R063SS32-6S 2 63 6 32 130 45 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). This item is stocked overseas. Please contact OSG for availability and delivery. Type 1 Type 2 l1 L l1 L With coolant hole. With coolant hole. WWW.OSGTOOL.COM OSG PHOENIX® PSE 1197 ØD Ød ØD Ød
