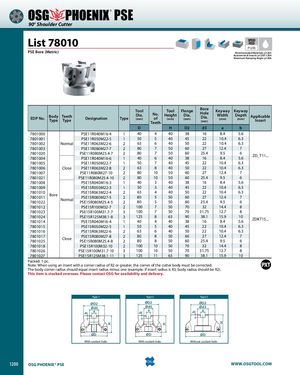

Общий каталог OSG 2018 - 2019 - страница 1200

® PSE 90° Shoulder Cutter List 78010 SPEEDFEED P1205 PSE Bore (Metric) Recommended Materials: p1205 Accessories & Inserts: p1203-1204 Maximum Ramping Angle: p1206 EDP No. BodyType TeethType Designation Type ToolDia.(mm) Tool FlangeNo.HeightDia.of(mm)(mm)TeethBoreHoleDia.(mm)KeywayKeywayWidthDepthApplicable(mm)(mm)Insert D H D2 d3 a b 7801000 PSE11R040M16-4 1 40 4 40 38 16 8.4 5.6 7801001 PSE11R050M22-5 1 50 5 40 45 22 10.4 6.3 7801002 Normal PSE11R063M22-6 2 63 6 40 50 22 10.4 6.3 7801003 PSE11R080M27-7 2 80 7 50 60 27 12.4 7 78010207801004 PSE11R080M25.4-7 2 80PSE11R040M16-6140 7 50640 60 25.4 9.538168.4 65.6 ZD_T11... 7801005 PSE11R050M22-7 1 50 7 40 45 22 10.4 6.3 7801006 Close PSE11R063M22-8 2 63 8 40 50 22 10.4 6.3 7801007 PSE11R080M27-10 2 80 10 50 60 27 12.4 7 7801021 PSE11R080M25.4-10 2 80 10 50 60 25.4 9.5 6 7801008 PSE15R040M16-3 1 40 3 40 38 16 8.4 5.6 7801009 PSE15R050M22-3 1 50 3 40 45 22 10.4 6.3 780101078010117801022BoreNormalPSE15R063M22-4PSE15R080M27-5PSE15R080M25.4-5222638080 4 40550550 50 22 10.4 6.3602712.476025.49.56 7801012 PSE15R100M32-7 2 100 7 50 70 32 14.4 8 7801023 PSE15R100M31.7-7 3 100 7 50 70 31.75 12.7 8 78010247801014 PSE15R125M38.1-8 3 125PSE15R040M16-4140 84 6340 90 38.1 15.938168.4 105.6 ZDKT15... 7801015 PSE15R050M22-5 1 50 5 40 45 22 10.4 6.3 7801016 PSE15R063M22-6 2 63 6 40 50 22 10.4 6.3 78010177801025 Close PSE15R080M27-8PSE15R080M25.4-8 22 8080 8 50 60 27 12.48506025.49.576 7801018 PSE15R100M32-10 2 100 10 50 70 32 14.4 8 7801026 PSE15R100M31.7-10 3 100 10 50 70 31.75 12.7 8 7801027 PSE15R125M38.1-11 3 125 11 63 90 38.1 15.9 10 Packed: 1 pc. Note: When using an insert with a corner radius of R2 or greater, the corner of the cutter body must be corrected. The body corner radius should equal insert radius minus one (example: if insert radius is R3, body radius should be R2). This item is stocked overseas. Please contact OSG for availability and delivery. Type 1 Type 2 Type 3 ØD2 ØD2 ØD2 Ød3a Ød3a Ød3a ØD ØD ØD With coolant hole. With coolant hole. Without coolant hole. 1200 OSG PHOENIX® PSE WWW.OSGTOOL.COM b H b H b H
