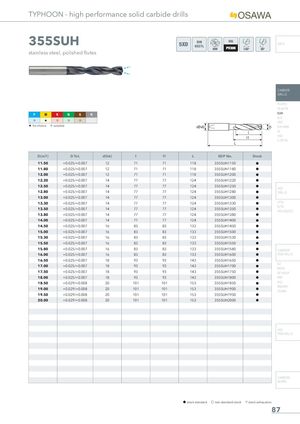

Общий каталог Osawa 2021 - страница 88

TYPHOON - high performance solid carbide drills 355SUH 5XD DIN6537L INFO stainless steel, polished flutes CARBIDE DRILLS PU-HPU TA-4HTA P M K N S H SUH ALH I H I I I HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA D(m7) D Tol. d(h6) l l1 L EDP No. Stock 11.50 +0.025/+0.007 12 71 71 118 355SUH1150 h 11.80 +0.025/+0.007 12 71 71 118 355SUH1180 h 12.00 +0.025/+0.007 12 71 71 118 355SUH1200 h 12.20 +0.025/+0.007 14 77 77 124 355SUH1220 h 12.50 +0.025/+0.007 14 77 77 124 355SUH1250 h HSS 12.80 +0.025/+0.007 14 77 77 124 355SUH1280 h DRILLS 13.00 +0.025/+0.007 14 77 77 124 355SUH1300 h 13.30 +0.025/+0.007 14 77 77 124 355SUH1330 h LFTA 13.50 +0.025/+0.007 14 77 77 124 355SUH1350 h SUTAHSS-HSS/CO 13.80 +0.025/+0.007 14 77 77 124 355SUH1380 h 14.00 +0.025/+0.007 14 77 77 124 355SUH1400 h 14.50 +0.025/+0.007 16 83 83 133 355SUH1450 h 15.00 +0.025/+0.007 16 83 83 133 355SUH1500 h 15.30 +0.025/+0.007 16 83 83 133 355SUH1530 h 15.50 +0.025/+0.007 16 83 83 133 355SUH1550 h 15.80 +0.025/+0.007 16 83 83 133 355SUH1580 h CARBIDE 16.00 +0.025/+0.007 16 83 83 133 355SUH1600 h END-MILLS 16.50 +0.025/+0.007 18 93 93 143 355SUH1650 h 17.00 +0.025/+0.007 18 93 93 143 355SUH1700 h G2 MDTA 17.50 +0.025/+0.007 18 93 93 143 355SUH1750 h HF VH/UP 18.00 +0.025/+0.007 18 93 93 143 355SUH1800 h MEF 18.50 +0.029/+0.008 20 101 101 153 355SUH1850 h ALU 19.00 +0.029/+0.008 20 101 101 153 355SUH1900 h MEX/MHUH/MH 19.50 +0.029/+0.008 20 101 101 153 355SUH1950 h 20.00 +0.029/+0.008 20 101 101 153 355SUH2000 h HSS END-MILLS CARBIDE BURRS h stock standard f non-standard stock m stock exhaustion 87
