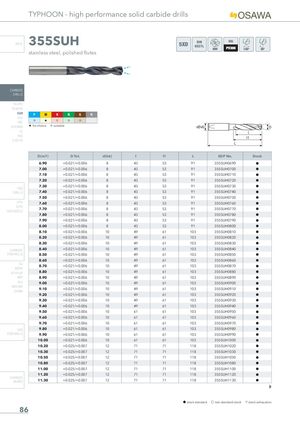

TYPHOON - high performance solid carbide drills

355SUH

5XD DIN INFO 6537L

stainless steel, polished flutes

CARBIDE DRILLS

PU-HPU

P M	K N	S H
I H	I I	I
H1st choiceI	suitable

HRC H 1st choice I suitable SUH MINI HL HSD C-SD-TA

	D(m7)	D Tol.	d(h6)	l	l1	L	EDP No.	Stock
	6.90	+0.021/+0.006	8	43	53	91	355SUH0690	h
	7.00	+0.021/+0.006	8	43	53	91	355SUH0700	h
	7.10	+0.021/+0.006	8	43	53	91	355SUH0710	h
	7.20	+0.021/+0.006	8	43	53	91	355SUH0720	h
HSS	7.30	+0.021/+0.006	8	43	53	91	355SUH0730	h
DRILLS	7.40	+0.021/+0.006	8	43	53	91	355SUH0740	h
	7.50	+0.021/+0.006	8	43	53	91	355SUH0750	h
LFTA	7.60	+0.021/+0.006	8	43	53	91	355SUH0760	h
SUTA SHSS/CO	7.70	+0.021/+0.006	8	43	53	91	355SUH0770	h
-	7.80	+0.021/+0.006	8	43	53	91	355SUH0780	h
	7.90	+0.021/+0.006	8	43	53	91	355SUH0790	h
	8.00	+0.021/+0.006	8	43	53	91	355SUH0800	h
	8.10	+0.021/+0.006	10	49	61	103	355SUH0810	h
	8.20	+0.021/+0.006	10	49	61	103	355SUH0820	h
	8.30	+0.021/+0.006	10	49	61	103	355SUH0830	h
CARBIDE	8.40	+0.021/+0.006	10	49	61	103	355SUH0840	h
ND-MILLS	8.50	+0.021/+0.006	10	49	61	103	355SUH0850	h
	8.60	+0.021/+0.006	10	49	61	103	355SUH0860	h
G2 MDTA	8.70	+0.021/+0.006	10	49	61	103	355SUH0870	h
HF VH/UP	8.80	+0.021/+0.006	10	49	61	103	355SUH0880	h
MEF	8.90	+0.021/+0.006	10	49	61	103	355SUH0890	h
ALU	9.00	+0.021/+0.006	10	49	61	103	355SUH0900	h
MEX/MH UH/MH	9.10	+0.021/+0.006	10	49	61	103	355SUH0910	h
	9.20	+0.021/+0.006	10	49	61	103	355SUH0920	h
	9.30	+0.021/+0.006	10	49	61	103	355SUH0930	h
	9.40	+0.021/+0.006	10	49	61	103	355SUH0940	h
	9.50	+0.021/+0.006	10	61	61	103	355SUH0950	h
	9.60	+0.021/+0.006	10	61	61	103	355SUH0960	h
	9.70	+0.021/+0.006	10	61	61	103	355SUH0970	h
HSS	9.80	+0.021/+0.006	10	61	61	103	355SUH0980	h
ND-MILLS	9.90	+0.021/+0.006	10	61	61	103	355SUH0990	h
	10.00	+0.021/+0.006	10	61	61	103	355SUH1000	h
	10.20	+0.025/+0.007	12	71	71	118	355SUH1020	h
	10.30	+0.025/+0.007	12	71	71	118	355SUH1030	h
	10.50	+0.025/+0.007	12	71	71	118	355SUH1050	h
	10.80	+0.025/+0.007	12	71	71	118	355SUH1080	h
	11.00	+0.025/+0.007	12	71	71	118	355SUH1100	h
	11.20	+0.025/+0.007	12	71	71	118	355SUH1120	h
CARBIDE BURRS	11.30	+0.025/+0.007	12	71	71	118	355SUH1130	h
